Da Round Pendant Horizontal
Email
Download
View

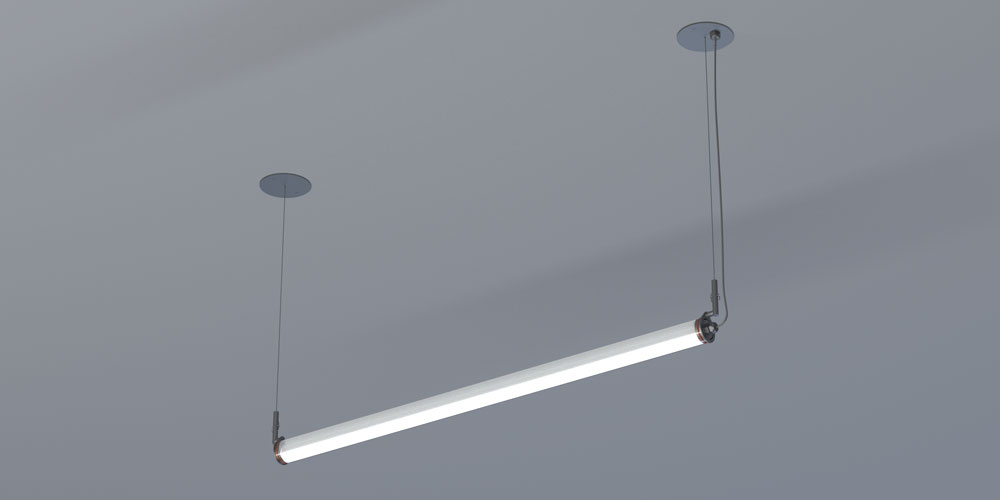

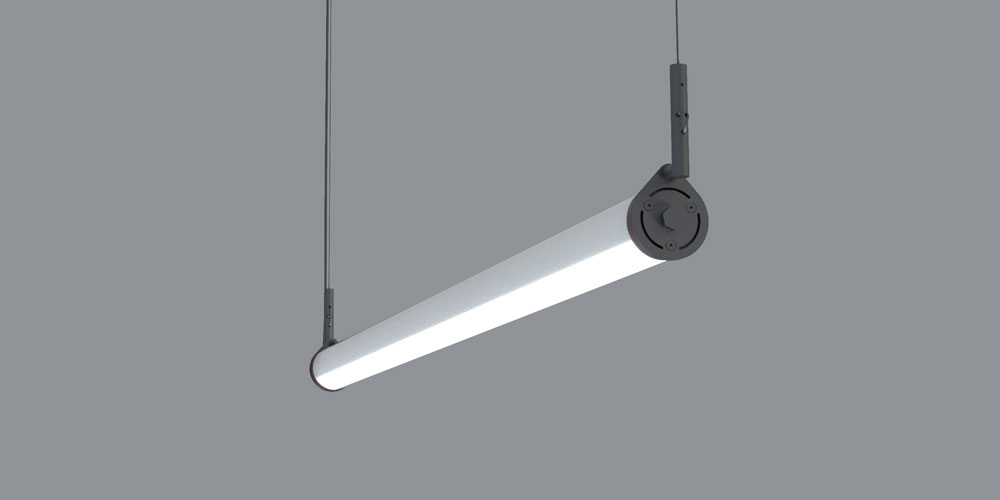

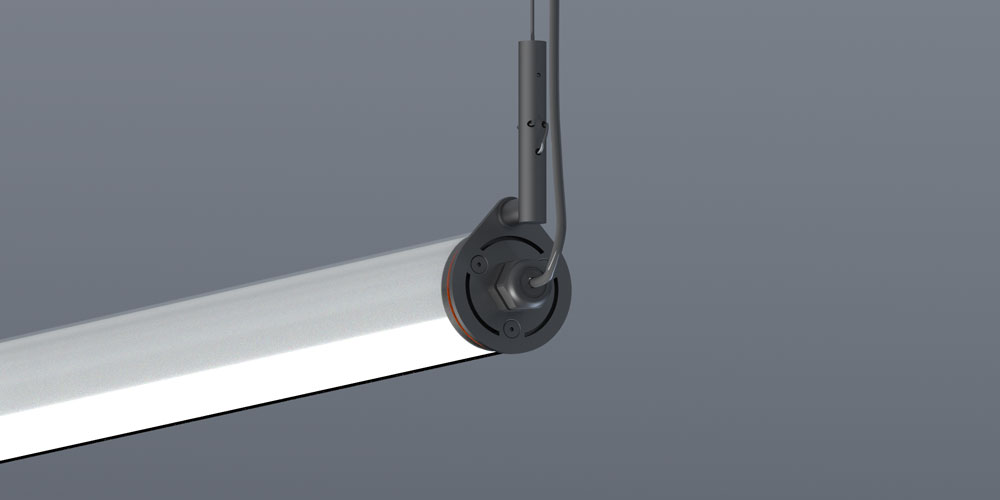

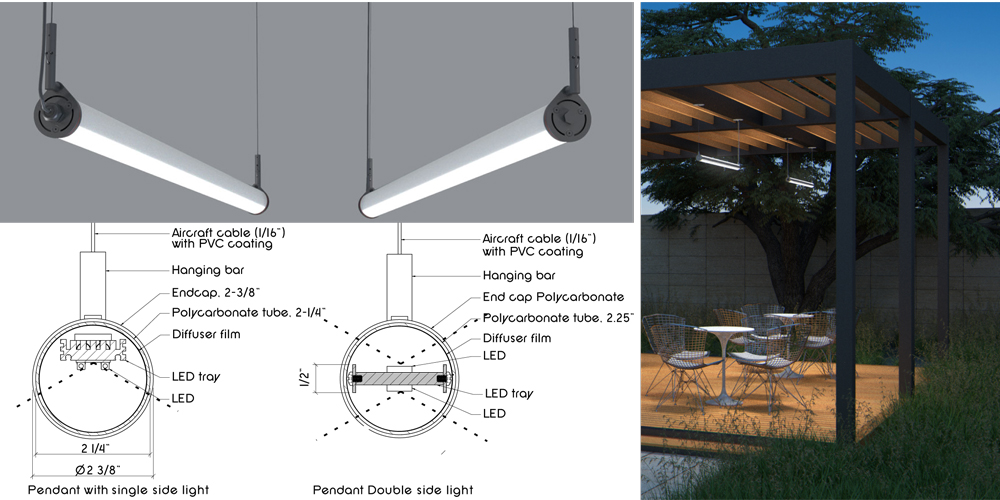

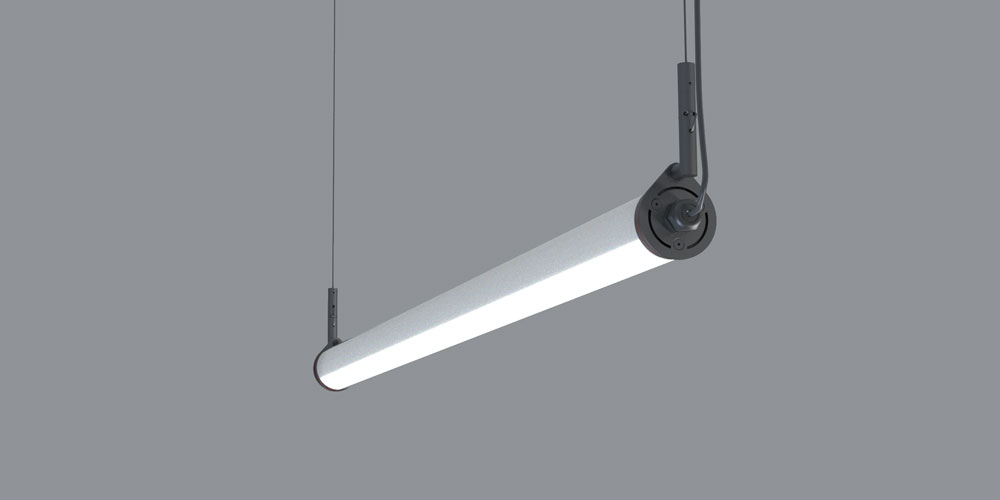

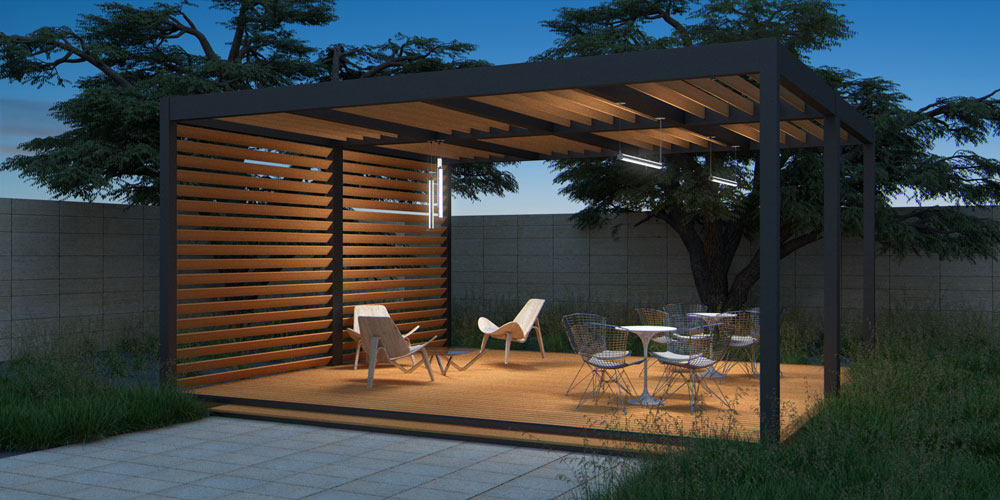

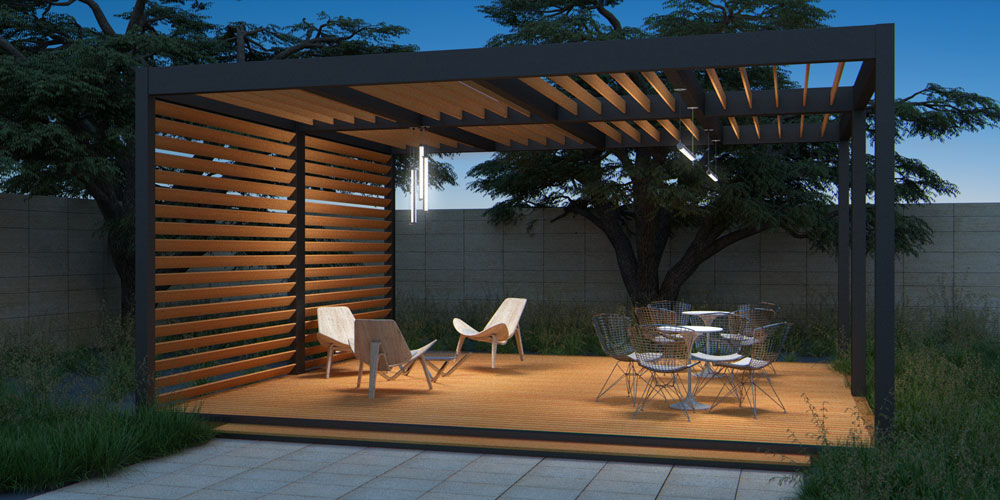

Pendant Lighting Fixture horizontally mounted with a horizontal lighting component for outdoors in an enclosure and end caps black in polycarbonate, and LED tray in aluminum, O ring at extremities seals the lighting components from water. A diffusing film is included for even illumination from the LED source. UV Stabilized Polycarbonate formulation. Dimmable 0-10V. Individual mounting and runs can be achieved, sharing mounting canopies. Fixtures are individually adjustable. Symmetrical or asymmetrical distribution available. Remote drivers.
IP66K rated
IP66K rated
Da Round Pendant Horizontal
Da / Outdoor
archlit reserves the right to make changes without prior notice. (02.25.2022)
Pendant Lighting Fixture horizontally mounted with a horizontal lighting component for outdoors in an enclosure and end caps black in polycarbonate, and LED tray in aluminum, O ring at extremities seals the lighting components from water. A diffusing film is included for even illumination from the LED source. UV Stabilized Polycarbonate formulation. Dimmable 0-10V. Individual mounting and runs can be achieved, sharing mounting canopies. Fixtures are individually adjustable. Symmetrical or asymmetrical distribution available. Remote drivers.
IP66K rated
IP66K rated
DarPh
Da
round
Pendant
horizontal
Lumen Output
27 HO - 2700 K 12.5 w/f 910 Lumens/f
30HO - 3000 K 12.5 w/f 980 Lumens/f
35HO - 3500 K 12.5 w/f 1010 Lumens/f
27 - 2700 K 5.5 w/f 384 Lumens/f
30 - 3000 K 5.5 w/f 384 Lumens/f
40 - 4000 K 384 lumens /f 4.9 w/f
Finish
WH - White
Only End stem and canopy
BK - Black
Only end Stem and canopy
Cu - Custom Color
Only end Stem and canopy
Specify RAL color
End caps, hardware, valves and liquid tight devices are black
Dimming
O - Non Dimmable 120v
1 - Non Dimmable 277v
4 - Dimmable 0-10v (4wires, 120 or 277 v)
Enclosure for dimmers provided as they are remote. Suitable
for damp location. In case of using special boxes for outdoor
locations (by others) use archlit boxes in the boxes for splices
Runs
A - 1' nominal module

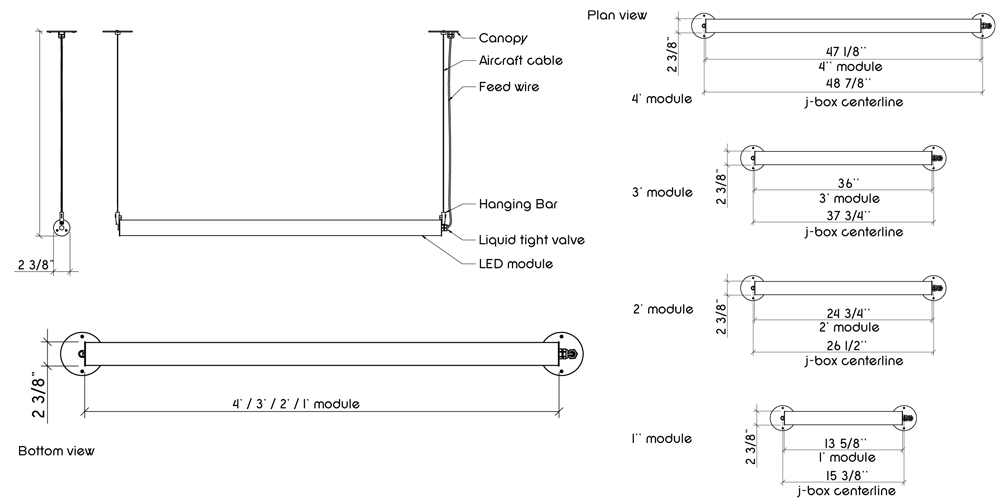

Dimension at center line of canopy (J Box)
B - 2' nominal module
Dimension at center line of canopy (J Box)
C - 3' nominal module
Dimension at center line of canopy (J Box)
D - 4' nominal module
Dimension at center line of canopy (J Box)
Total Run: (0 ft 0 in)

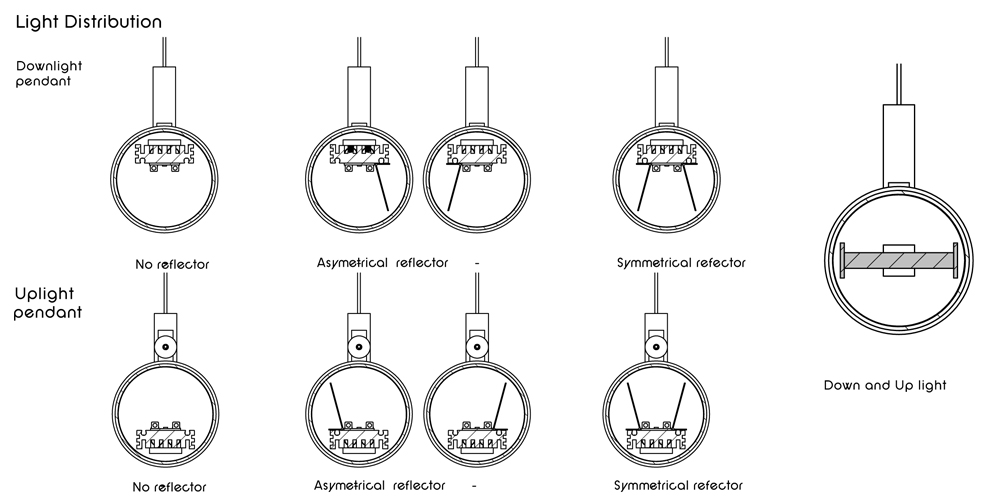

Output direction
Dn - Down
DoAs - Down Assymmetrical
DoSym - Down Symmetrical 36 degrees
Up - Up
UpAs - Up Assymmetrical
Up Sym - Up Symmetrical
Ds - Double sided
Only for std output 5.5 w/f. Only std distribution. Assume 11
w/f with both sides
Criteria from fixture installed on horizontal plane with
canopies on top
Using asymmetrical in runs, specify qty. of each in product
code. Good for estimates. Provide schemes /drawings to
clarify asymmetrical side. archlit will generate submittals
Specify qty of each per run
Suspension aircraft cablet
36 - 36" max
100 - 100'' max
LCu - Custom Length
Specify LCu xx"
Emergency
00 - No Emergency
EM - Emergency
Emergency in a run, specify qty of packs. Box for emergency
outdoors installed (by others)
We suggest for one emergency pack and driver Polycase SB-
46-02 (1 driver and 1 emergency pack) (by others
Notes:
Drivers are remote at 80’ max.
CRI >90
McAdam 3 bin
Location of drivers in a cluster with access recommended for easier dimmer and power connections. When 0-10v system is used, 2 wires for longer runs to fixtures from cluster is required (instead of 5 wires) for easier installation
CRI >90
McAdam 3 bin
Location of drivers in a cluster with access recommended for easier dimmer and power connections. When 0-10v system is used, 2 wires for longer runs to fixtures from cluster is required (instead of 5 wires) for easier installation
