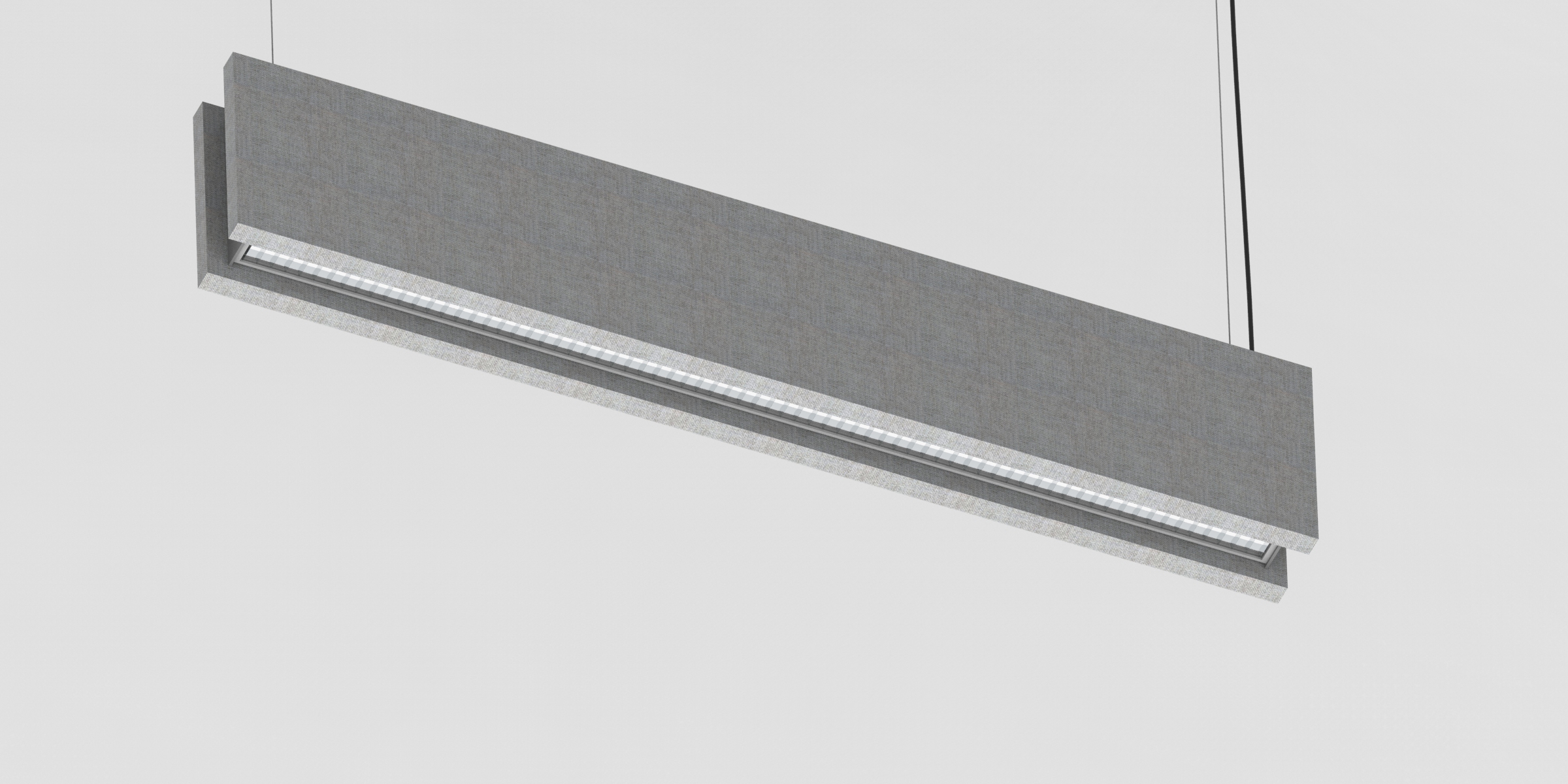

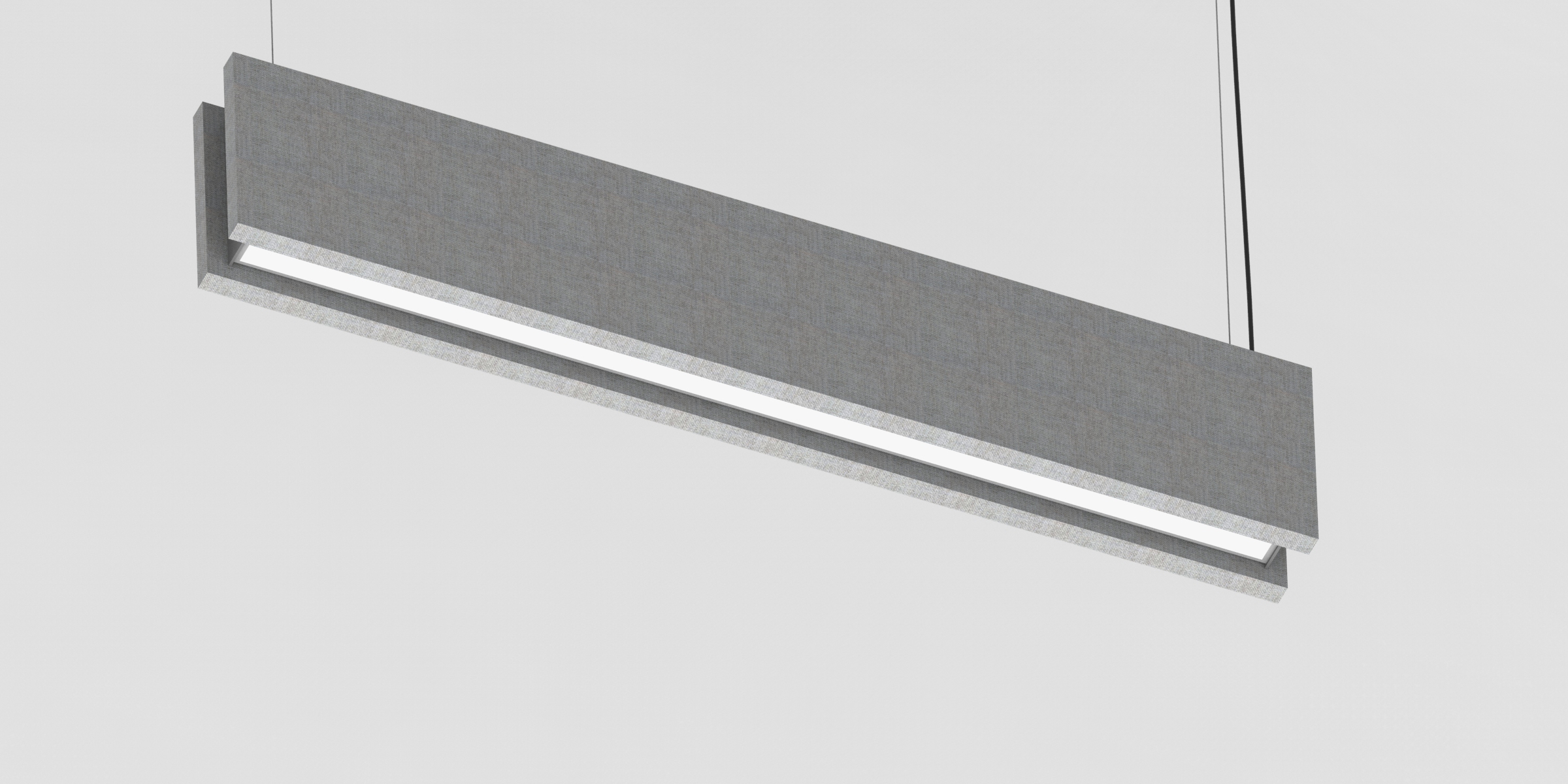

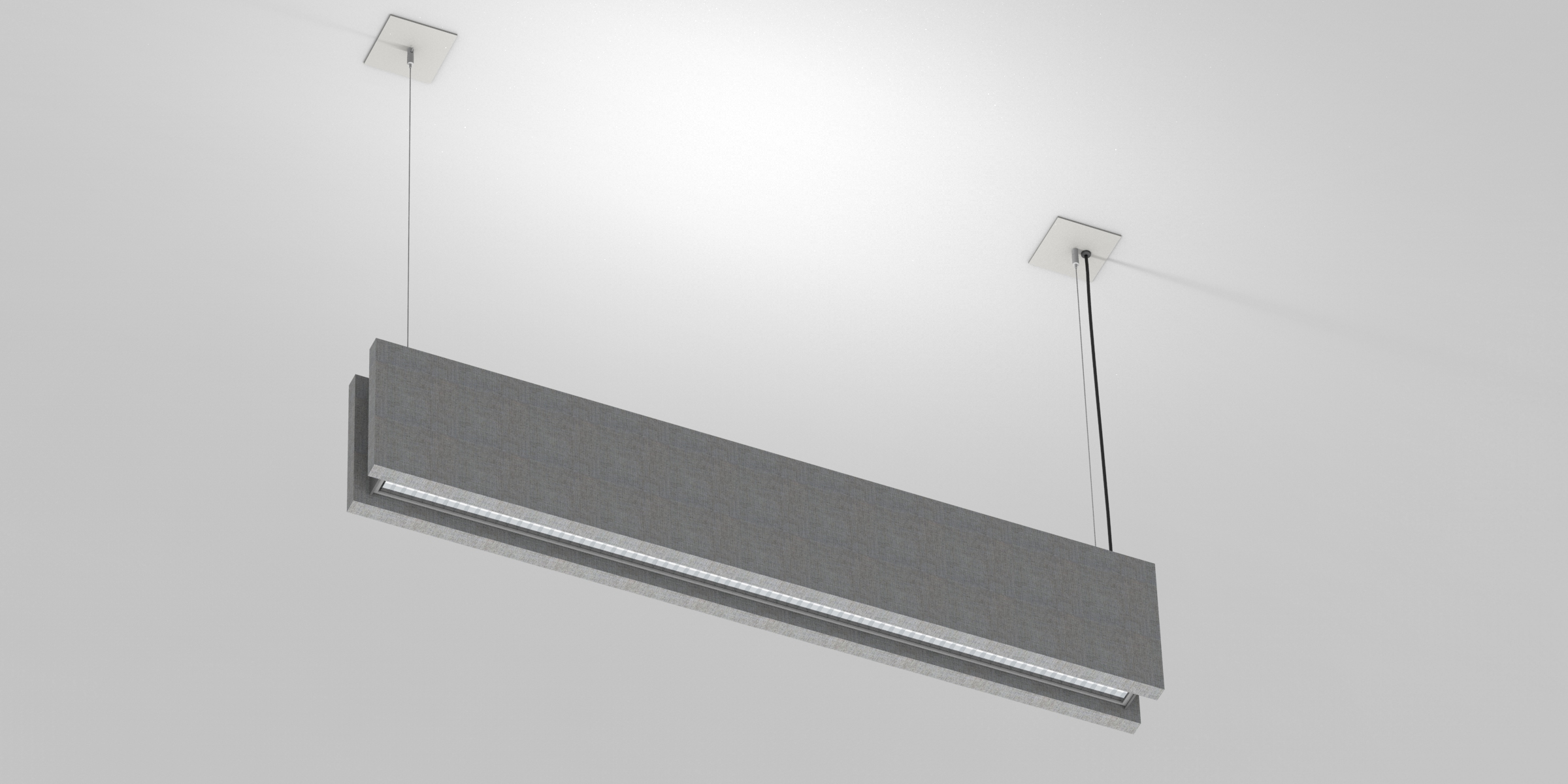

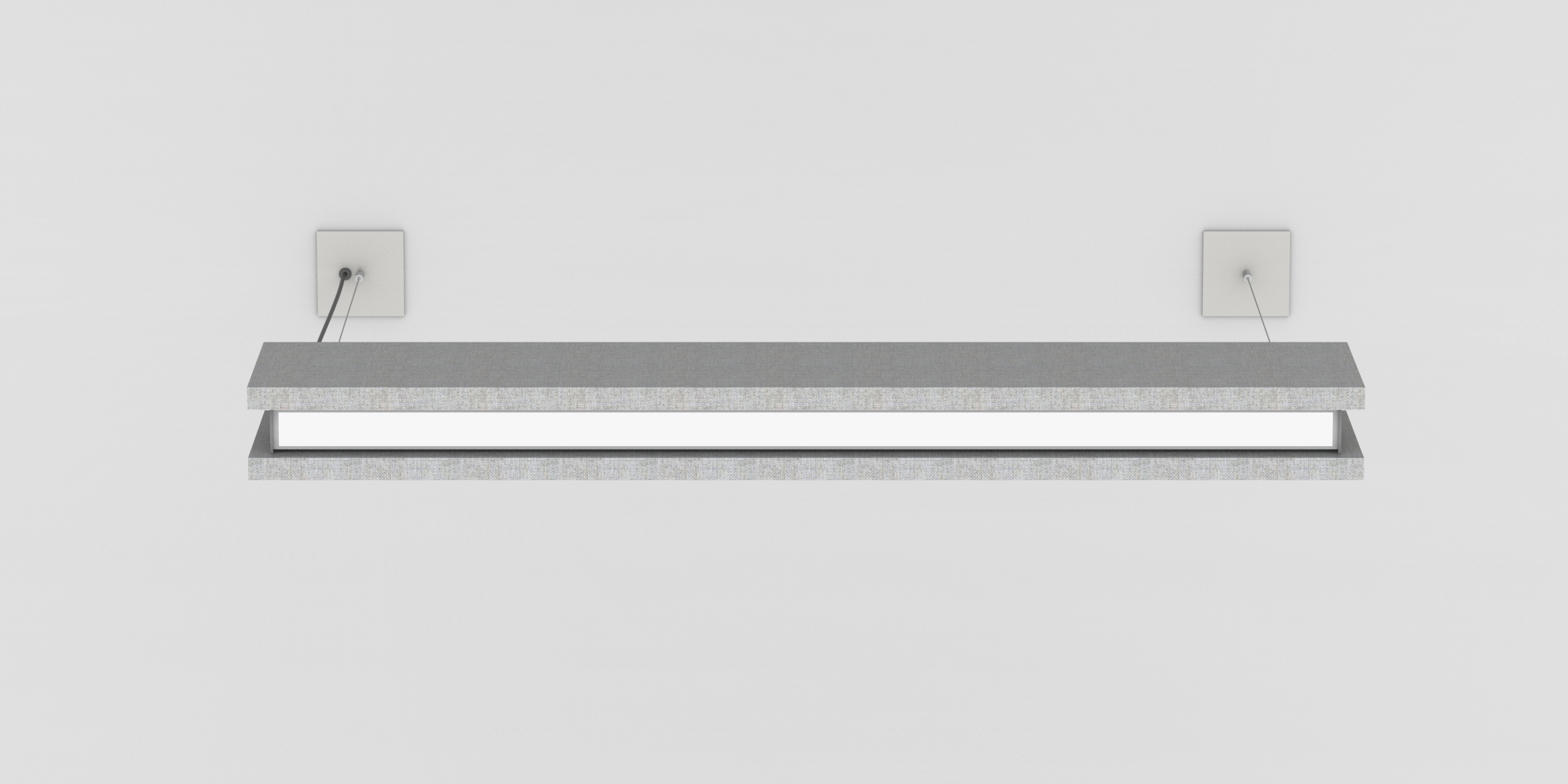

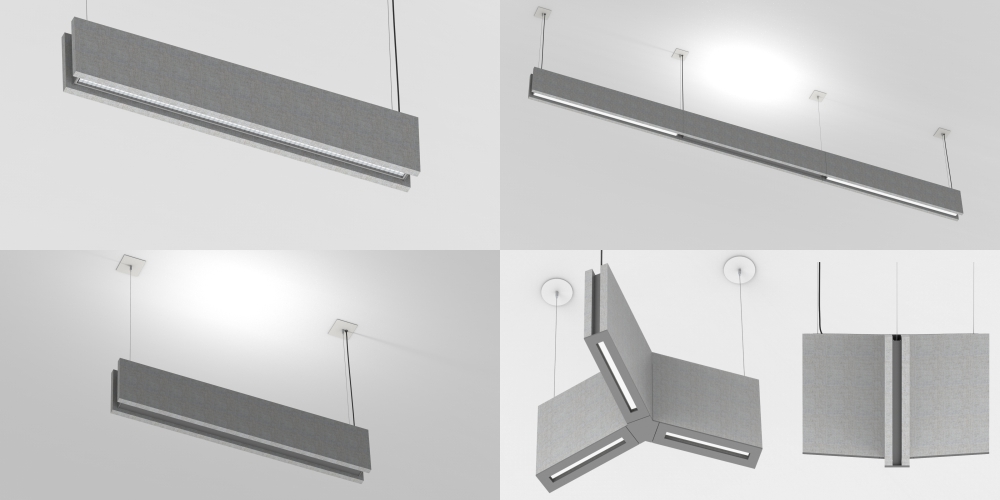

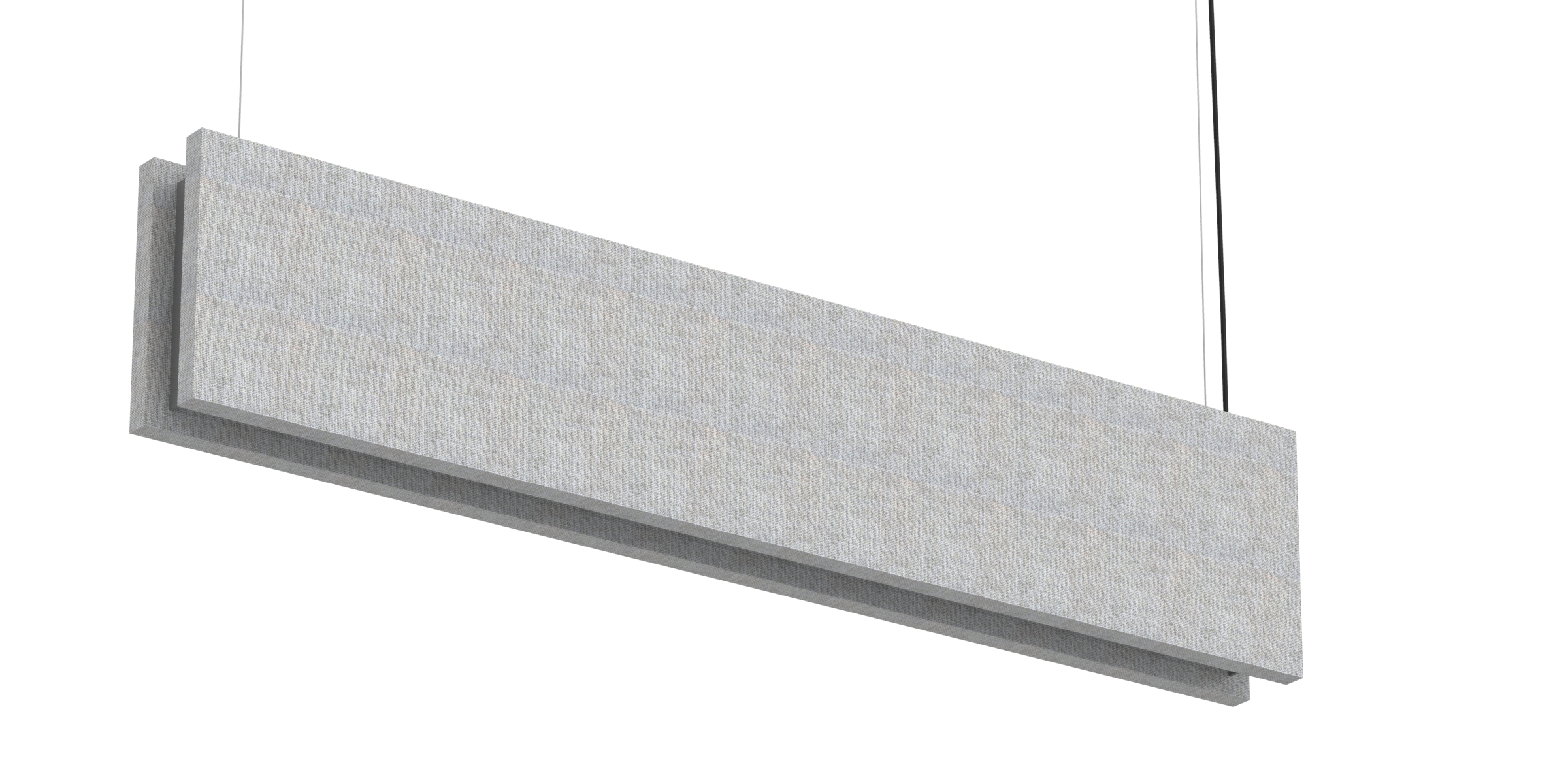

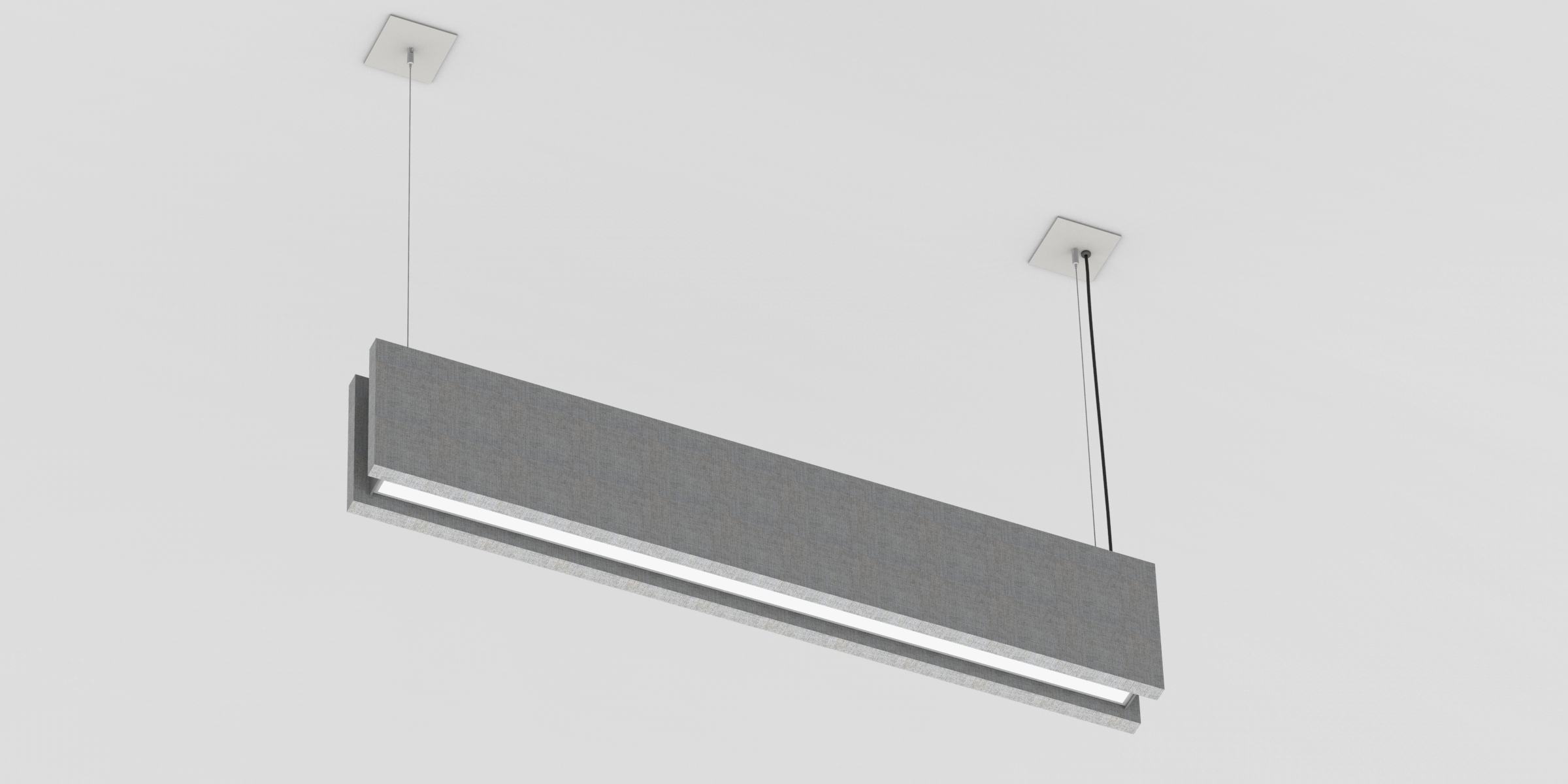

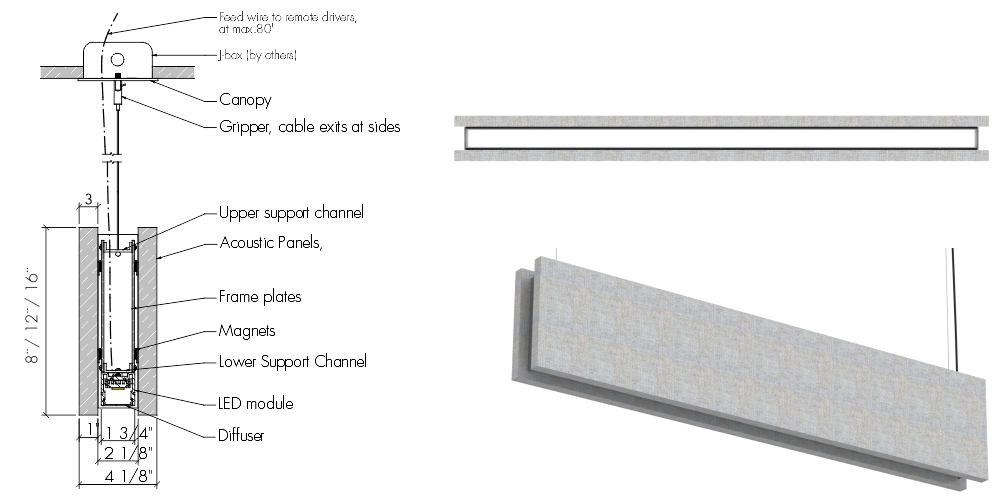

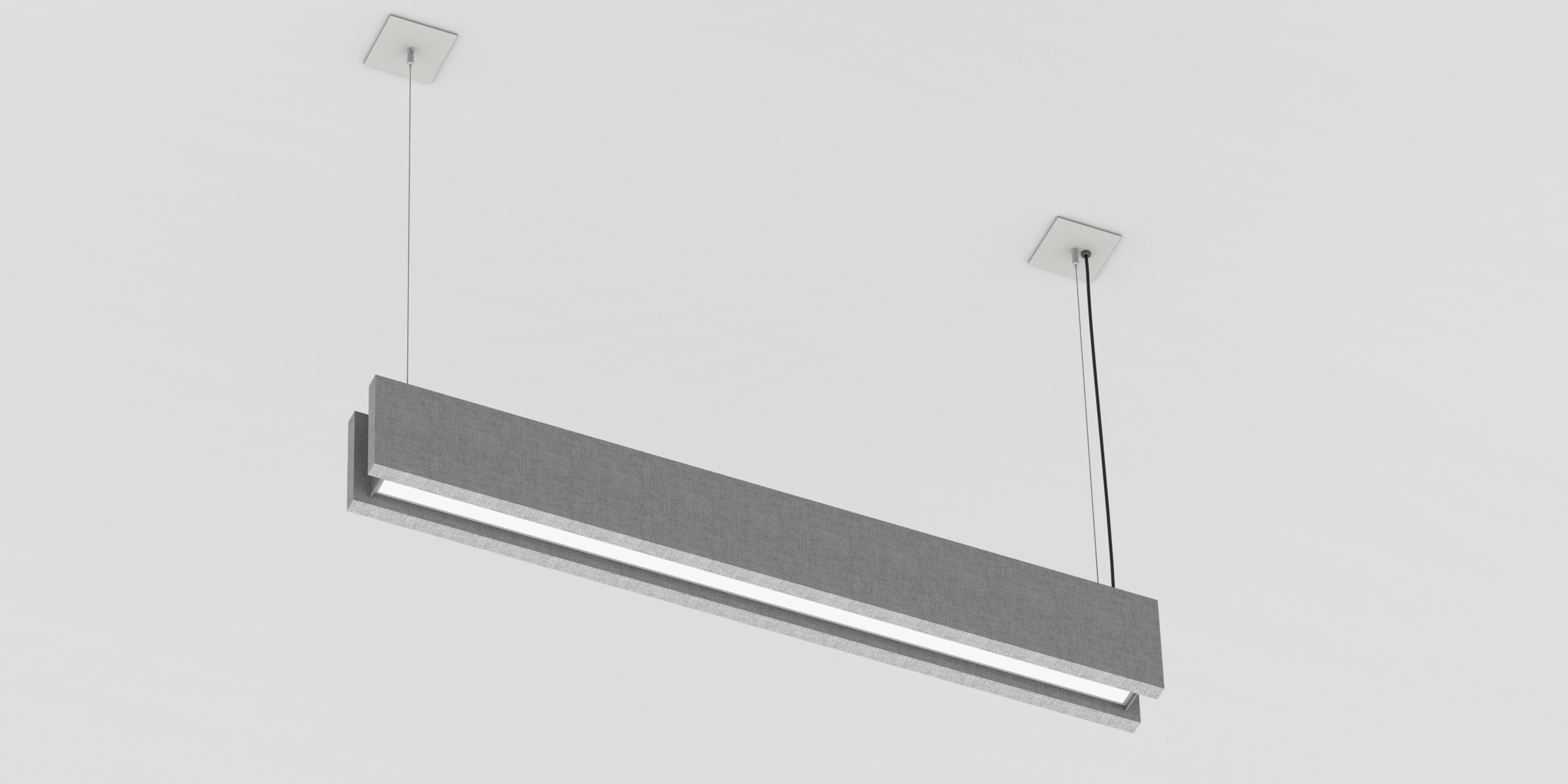

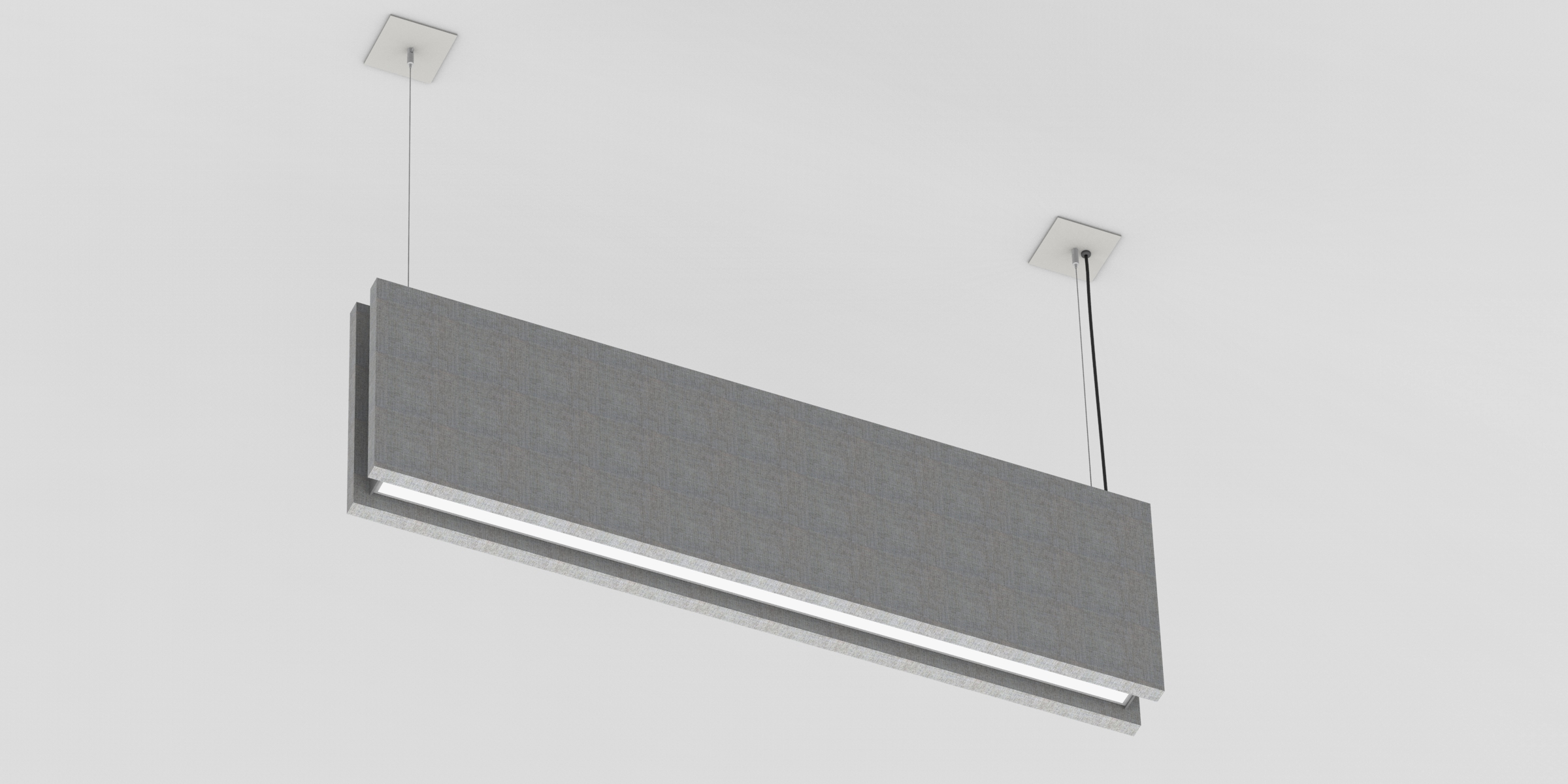

Pendant system in aluminum extrusion and acoustic panels for acoustic treatment of spaces. Acoustic panels in 1" (NRC of 0.9) and 2" (NRC of 0.95).Different configurations upon designer needs. Upholstery in different colors. Selection of custom provided by client possible. archlit will need to test selection to verify is workable Programmable drivers (at factory) allow different outputs. End caps in aluminum powder coated; runs available. Drivers are remote up to 80 feet.

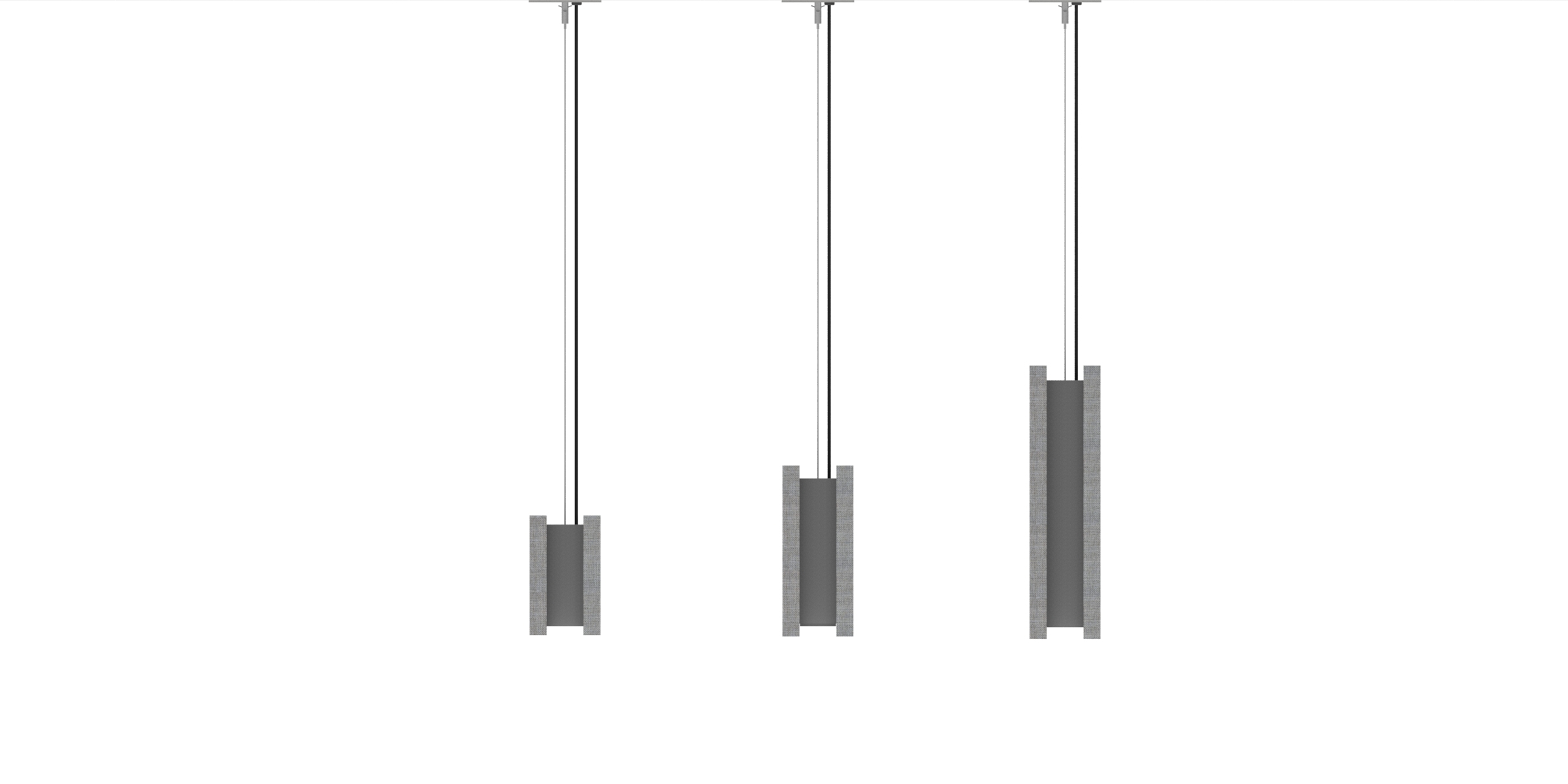

Acoustic panels in 8", 12" or 16" height. Custom heights upon request
Acoustic panels in 8", 12" or 16" height. Custom heights upon request
Surprise FeltWind
Surprise / Pendant
archlit reserves the right to make changes without prior notice. (11.21.2023)
Pendant system in aluminum extrusion and acoustic panels for acoustic treatment of spaces. Acoustic panels in 1" (NRC of 0.9) and 2" (NRC of 0.95).Different configurations upon designer needs. Upholstery in different colors. Selection of custom provided by client possible. archlit will need to test selection to verify is workable Programmable drivers (at factory) allow different outputs. End caps in aluminum powder coated; runs available. Drivers are remote up to 80 feet.
Acoustic panels in 8", 12" or 16" height. Custom heights upon request
Acoustic panels in 8", 12" or 16" height. Custom heights upon request
SurFeWi
Surprise
FeltWind
Downlight Output
FaCap - No lighting, metal cap
3017do - 3000 K 1200 lumens / ft 12 w /ft
3014do - 3000 K 1000 lumens / ft 10 w /ft
3011do - 3000 K 780 lumens / ft 7.5 w /ft
3008do - 3000 K 350 lumens / ft 5.5w /ft
3005do - 3000 K 500 lumens / ft 3.1 w /ft
3517do - 3500 K 1200 lumens / ft 12 w /ft
3514do - 3500 K 1000 lumens / ft 10 w /ft
3511do - 3500 K 780 lumens / ft 7.5 w /ft
3508do - 3500 K 560 lumens / ft 5.5w /ft
3505do - 3500 K 350 lumens / ft 3.1 w /ft
4017do - 4000 K 1200 lumens / ft 12 w /ft
4014do - 4000 K 1000 lumens / ft 10 w /ft
4011do - 4000 K 780 lumens / ft 7.5 w /ft
4008do - 4000 K 500 lumens / ft 5.5w /ft
4005do - 4000 K 350 lumens / ft 3.1 w /ft
WhTudo - White tuning 2700K @ 1050 lumens/foot and 6500k @1200 lumens/foot 12.5 watt/foot
Use of programmable drivers allow different outputs (lumen output and load) in fix color temperature versions

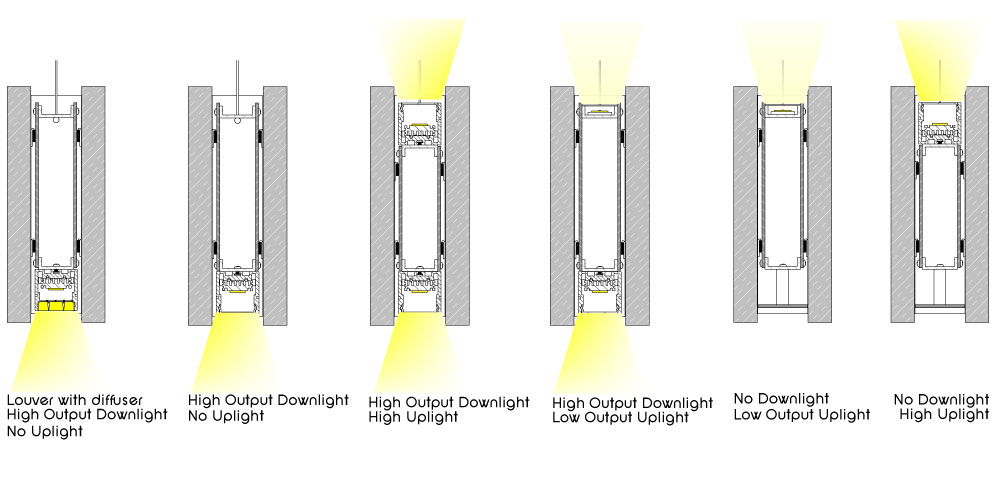

UpLight Output
NoUp - No Uplight
3017up - 3000 K 1200 lumens / ft 12 w /ft
3014up - 3000 K 1000 lumens / ft 10 w /ft
3011up - 3000 K 780 lumens / ft 7.5 w /ft
3008up - 3000 K 560 lumens / ft 5.5w /ft
3005up - 3000 K 350 lumens / ft 3.1 w /ft
3517up - 3500 K 1200 lumens / ft 12 w /ft
3514up - 3500 K 1000 lumens / ft 10 w /ft
3511up - 3500 K 780 lumens / ft 7.5 w /ft
3508up - 3500 K 560 lumens / ft 5.5w /ft
3505up - 3500 K 350 lumens / ft 3.1 w /ft
4017up - 4000 K 1200 lumens / ft 12 w /ft
4014up - 4000 K 1000 lumens / ft 10 w /ft
4011up - 4000 K 780 lumens / ft 7.5 w /ft
4008up - 4000 K 500 lumens / ft 5.5w /ft
4005up - 4000 K 350 lumens / ft 3.1 w /ft
WhTuUp - White tuning 2700K @ 1050 lumens/foot and 6500k @1200 lumens/foot 12.5 watt/foot
All Uplight versions with light will have a transparent diffuser
Use of programmable drivers allow different outputs (lumen output and load) in fix color temperature versions
Finish
WH - White
BK - Black
CU - Custom color
Specify RAL color
Metal parts,canopy, and end caps

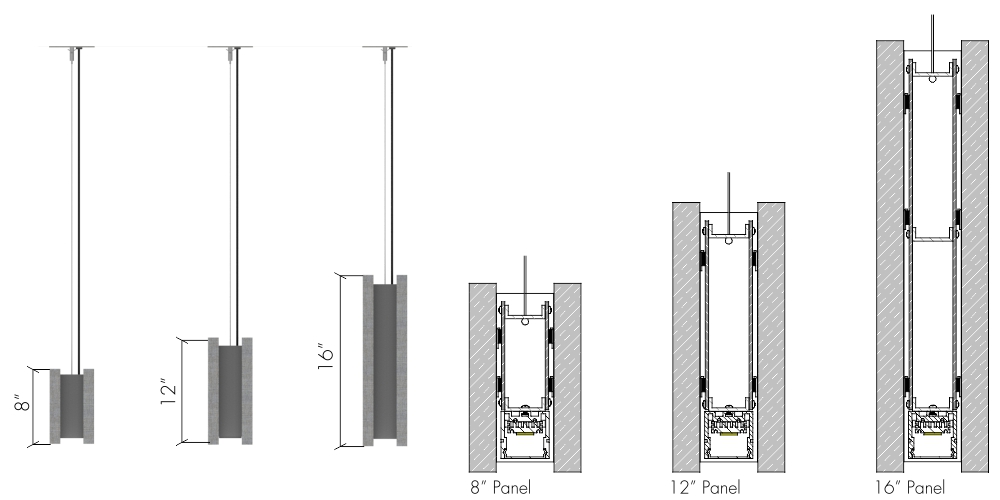

Panels Height
08H - 8" Height Panels
12H - 12" Height Panels
16H - 16" Height Panels
Panels thickness
Th1 - 1" thickness with NRC 0.9
Th2 - 2" thickness with NRC 0.95
Finish of Fabric
Gr - Gray
Acoustic capabilities by panels. Fabric helps to achieve
performance. Finish with a thin felt fabric Std is Sleet Gray 471
from chart
CuFa - Acoustical material
Please select chart number. Colors can have variations
depending on screen settings
Client - Custom Standard or by client Fabric
Provided by client. archlit will need samples To study
possibility of work-ability with panels.
Custom Standard, specify color from chart at Custom finish
Dimming
O - Non dimmable 120v
1 - Non dimmable 277v
4 - Dimmable 0-10v (4wires, 120 or 277 v)
Br - No drivers for Blind Runs

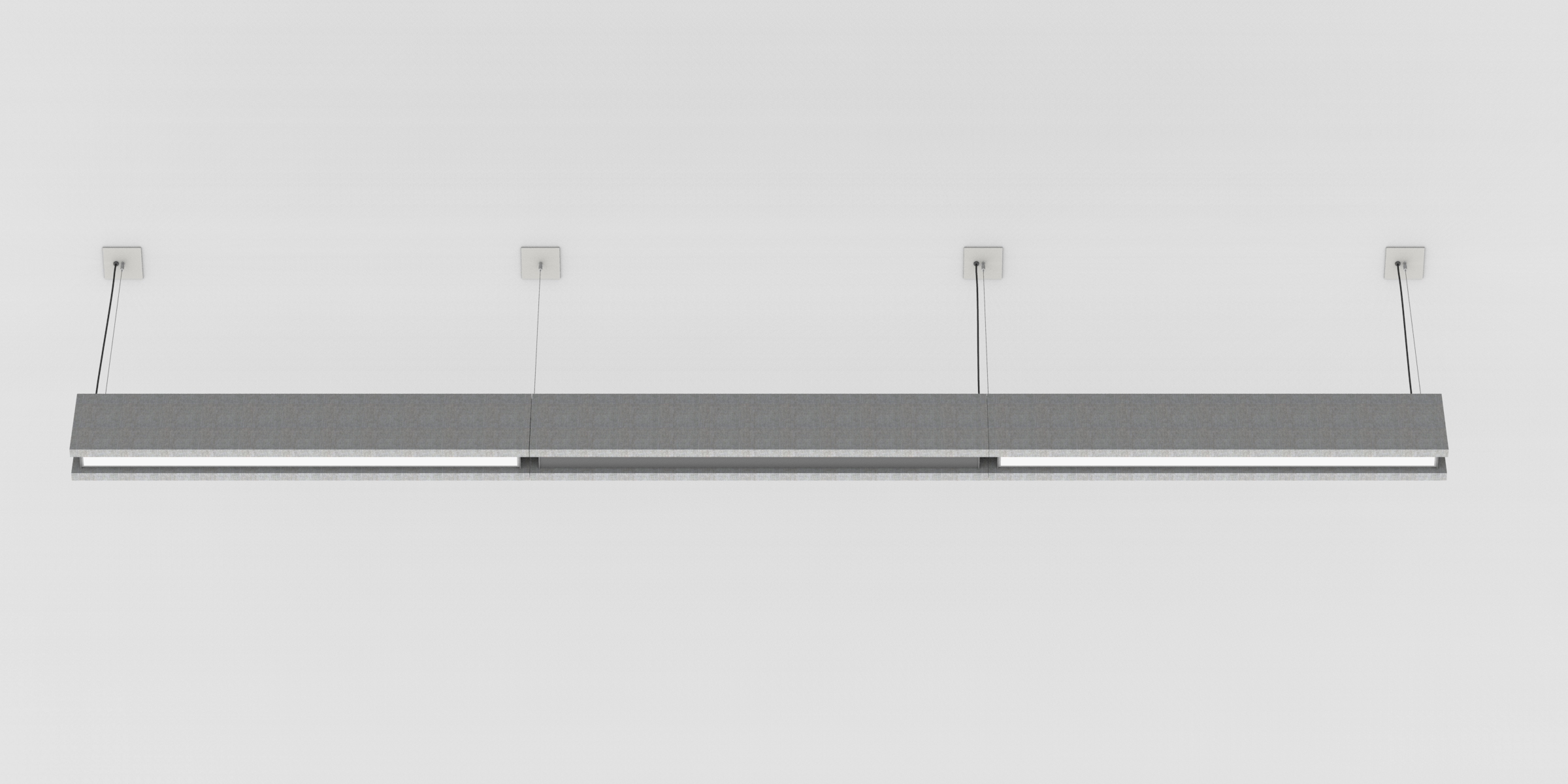

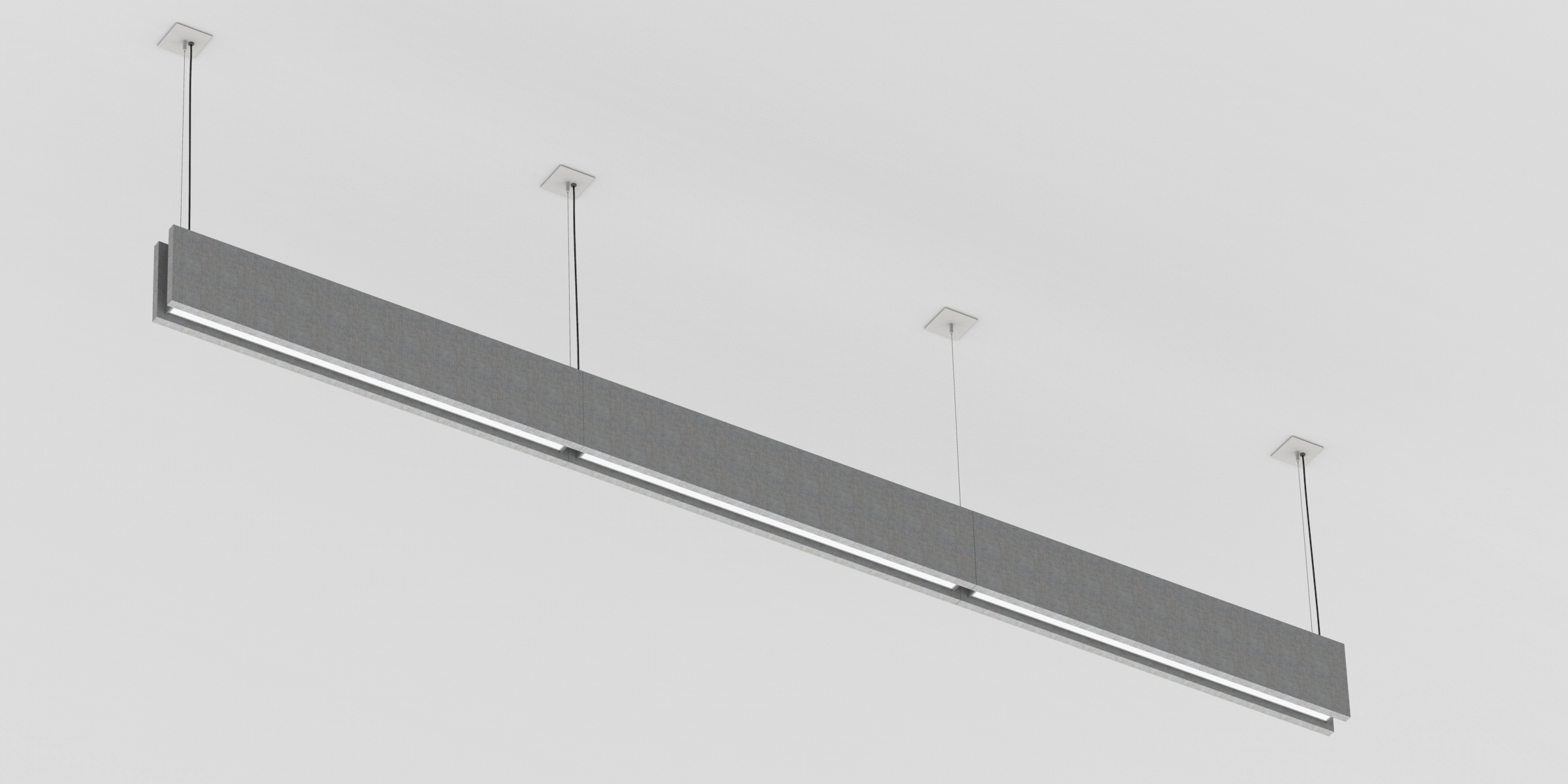

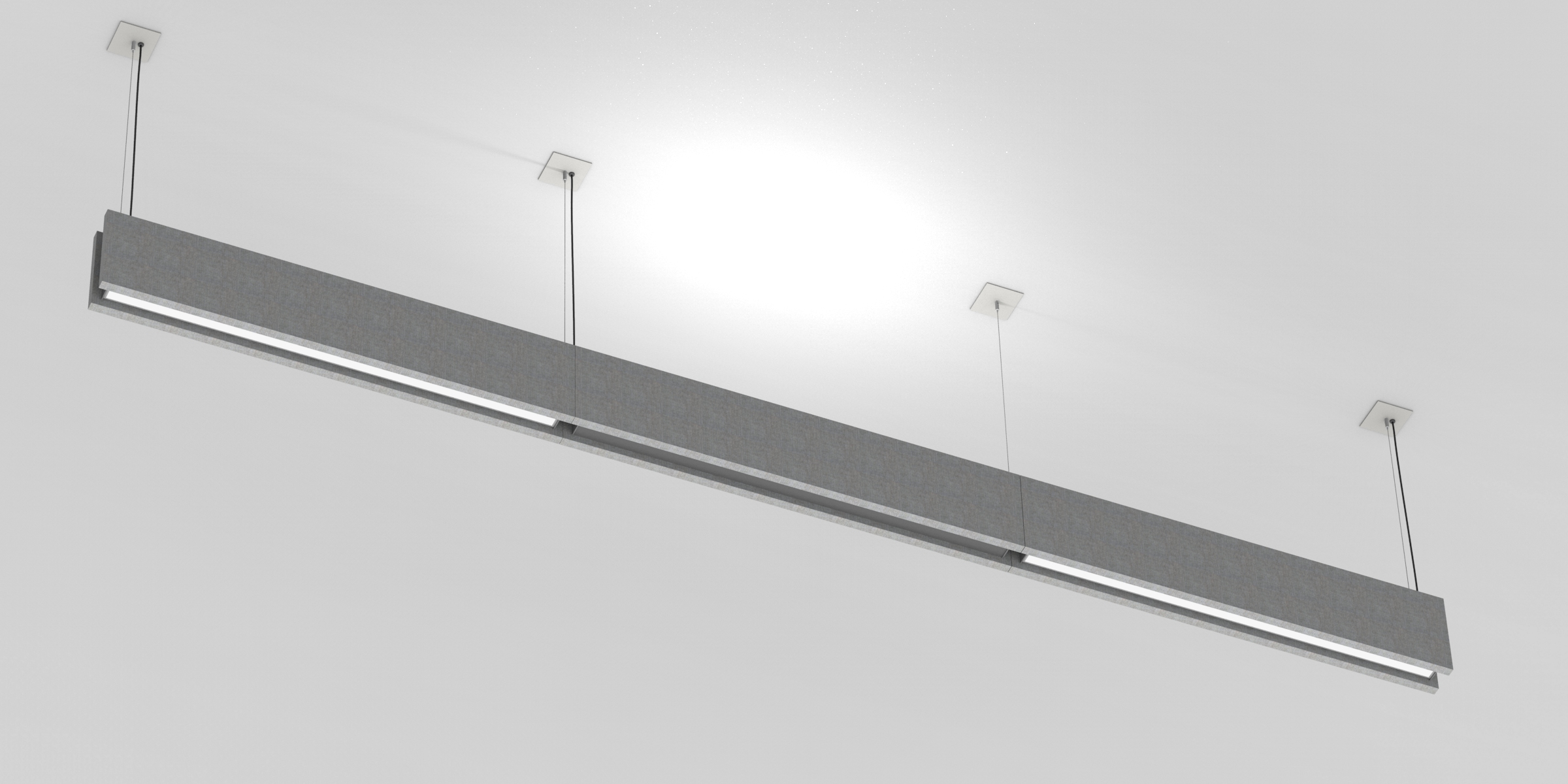

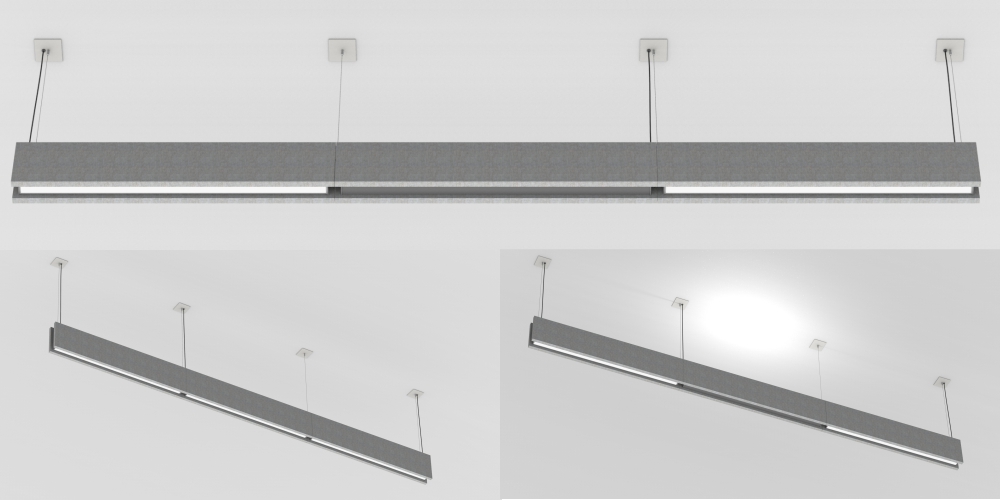

Runs
B - 2' nominal 26¨ LED module 23 5/8"
C - 3' nominal 36 1/2¨ LED module 34 1/8"
D - 4' nominal 48 1/2¨ LED module 46 1/8¨
E - 5' nominal 59¨ LED module 56 5/8
F - 6' nominal 72¨ LED module 69 5/8"
G - 7' nominal 81 1/2¨ LED module 79 1/8"
H - 8' nominal 93 1/2" LED module 91 1/8
Total Run: (0 ft 0 in)
Extrusions max length is 4' nominal
Special lengths consult factory
Factory will produce submittals for runs for approval
For special angles and configurations not straight or with special segments, consult factory
Canopy
SQ - Square Plate 4 1/4" x 4 1/4"
RD - Round 4 1/4"
Suspension Aircraft Cable
36 - 36" max
100 - 100" max
Emergency
00 - No Emergency
EM - Emergency
Specify qty only if Emergency
Specify quantity of 4' nominal in runs
Emergency and driver remote, up to 50"
Use BWG 18 for connections
Notes:
McAdam 3 step binning
More than 90 CRI
Drivers remote
Max distance to drivers 80'
1" panels NRC 0.9
2" panels NRC 0.95
More than 90 CRI
Drivers remote
Max distance to drivers 80'
1" panels NRC 0.9
2" panels NRC 0.95
