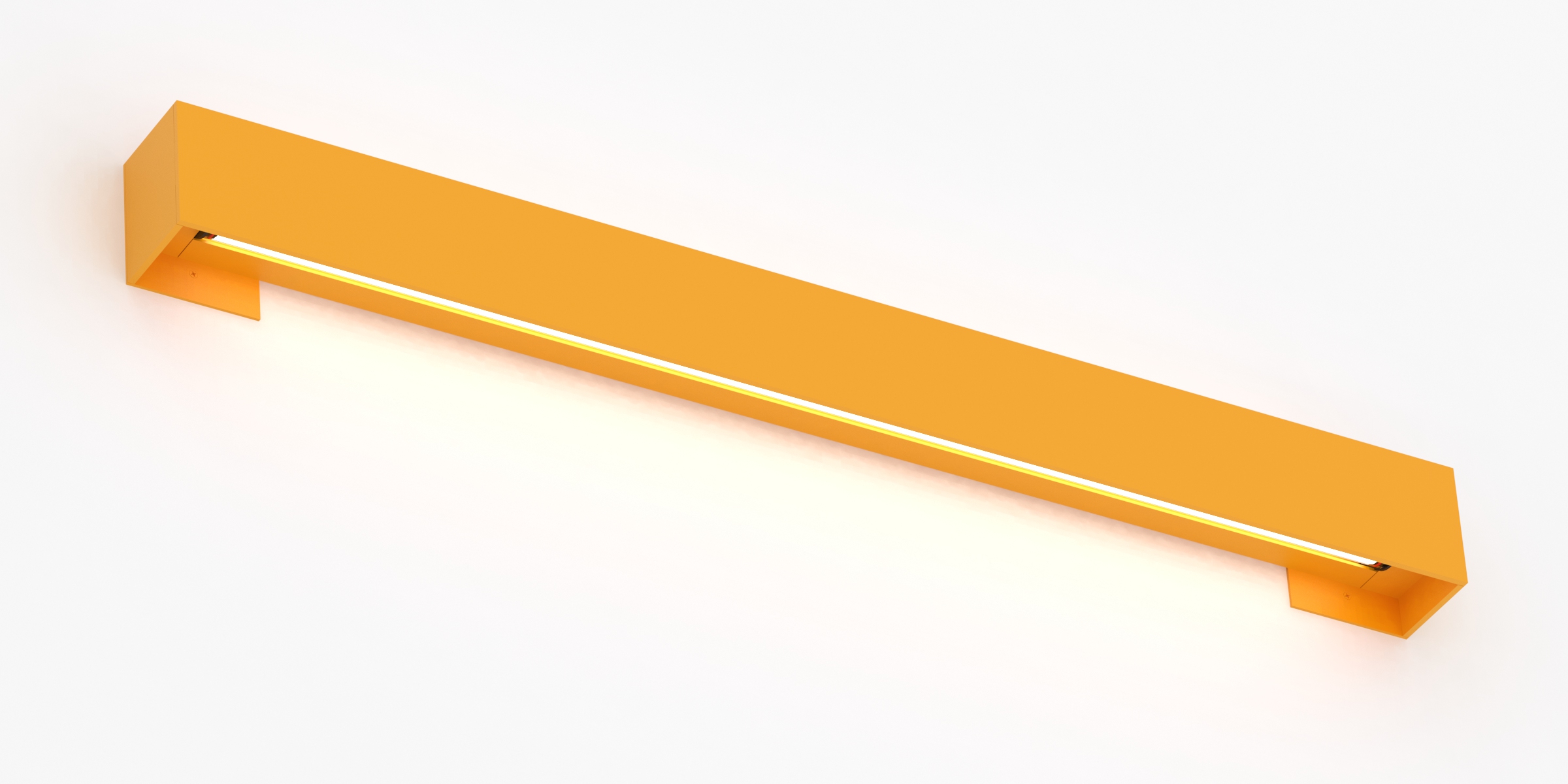

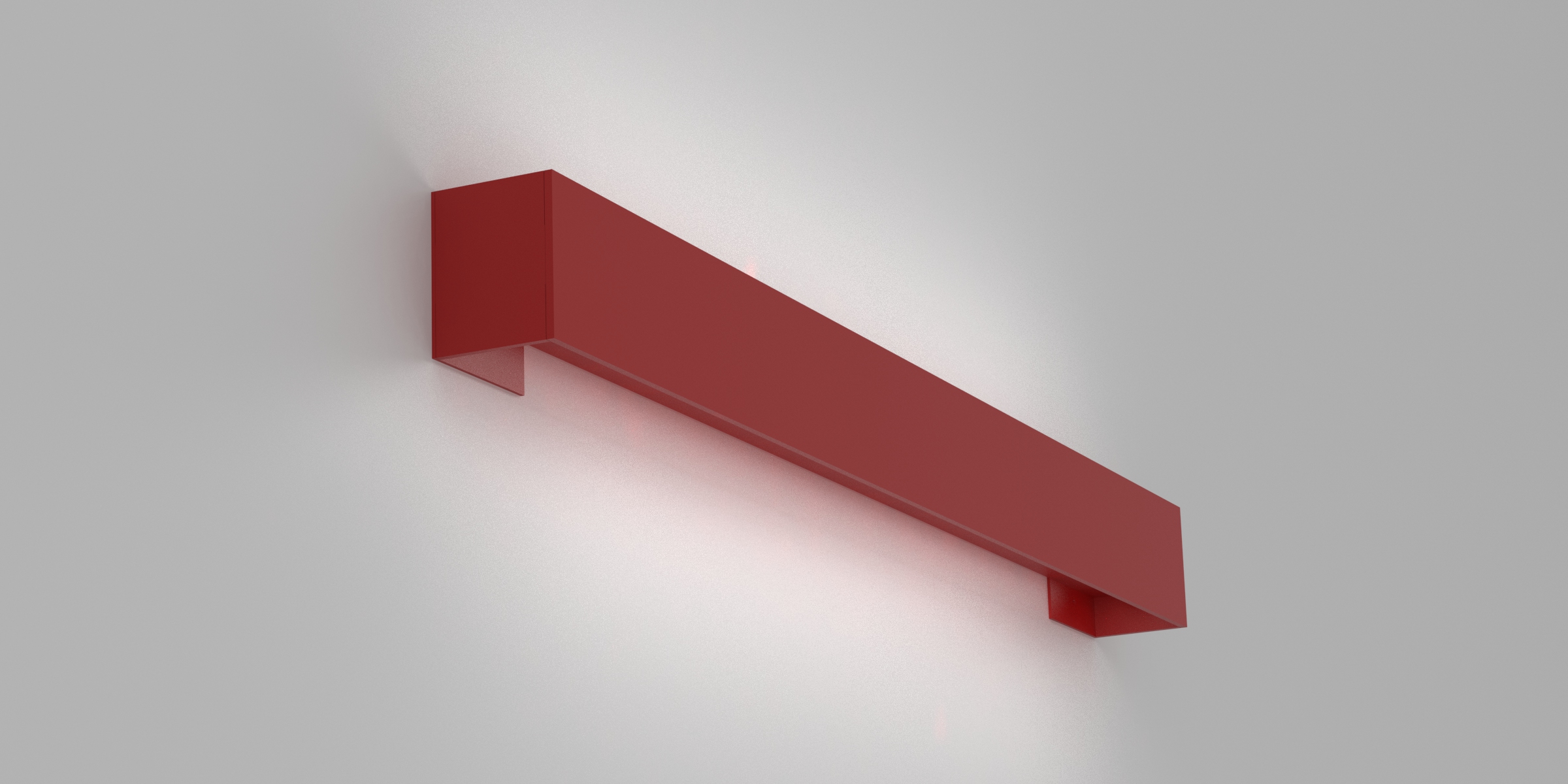

Wall mounted Lighting Fixture for outdoors in an enclosure and end caps black in aluminum and polycarbonate, and LED tray in aluminum, O ring at extremities seals the lighting components from water. Dimmable 0- 10V. Individual mounting and runs can be achieved, sharing mounting canopies. Symmetrical or asymmetrical distribution available. Remote drivers.
IP66K rated
IP66K rated
Da Box Wall
Da / Outdoor
archlit reserves the right to make changes without prior notice. (12.02.2022)
Wall mounted Lighting Fixture for outdoors in an enclosure and end caps black in aluminum and polycarbonate, and LED tray in aluminum, O ring at extremities seals the lighting components from water. Dimmable 0- 10V. Individual mounting and runs can be achieved, sharing mounting canopies. Symmetrical or asymmetrical distribution available. Remote drivers.
IP66K rated
IP66K rated
DaBoWa
Da
Box
Wall
Lighting Fixture
DABoWa - Da Box Wall
Lumen Output
27 HO - 2700 K 12.5 w/f 910 Lumens/f
30HO - 3000 K 12.5 w/f 980 Lumens/f
35HO - 3500 K 12.5 w/f 1010 Lumens/f
40HO - 4000 K 12.5 w/f 1040 Lumens/f
27 - 2700 K 5.5 w/f 384 Lumens/f
30 - 3000 K 5.5 w/f 384 Lumens/f
40 - 4000 K 384 lumens /f 4.9 w/f
Output direction
Up - Up
Dn - Down
Ds - Double sided
Only for std output 5.5 w/f.
Only std distribution.
Assume 11 w/f with both sides.with combinations of outputs
A different output up than down implies (2) drivers
Criteria from fixture installed on horizontal plane with canopies on top
Finish
WH - White
BK - Black
Cu - Custom Color
Specify RAL color
End caps, hardware, valves and liquid tight devices are black
Dimming
0 - Non Dimmable 120v
1 - Non Dimmable 277v
4 - Dimmable 0-10v (4wires, 120 or 277 v)
Enclosure for dimmers provided as they are remote. Suitable for damp location. In case of using special boxes for outdoor locations (by others) use archlit boxes in the boxes for splices
Lengths
B - 2' nominal module
C - 3' nominal module
D - 4' nominal module
E - 5' nominal module
F - 6' nominal module
G - 7' nominal module
H - 8' nominal module
Individual fixtures
Light Distribution
St - Standard
Sd - Symmetrical 36 degrees
Ad - Asymmetrical
Using asymmetrical in runs, specify qty. of each in product code. Good for estimates. Provide schemes /drawings to clarify asymmetrical side.
archlit will generate submittals
Specify qty of each per run
Emergency
00 - No emergency
EM - Emergency
Max 4' nominal of emergency
Emergency in a run, specify qty of packs. Box for emergency outdoors installed (by others)
We suggest for one emergency pack and driver Polycase SB-46-02 (1 driver and 1 emergency pack) (by others)
Notes:
Drivers are remote at 80’ max.
Location of drivers in a cluster with access recommended for easier dimmer and power connections.
CRI more than 90, McAdam 3 bin
Location of drivers in a cluster with access recommended for easier dimmer and power connections.
CRI more than 90, McAdam 3 bin
