Ancar Slots 5, extruded aluminum minimal design lighting fixture with remote drivers (max 60' from fixture).

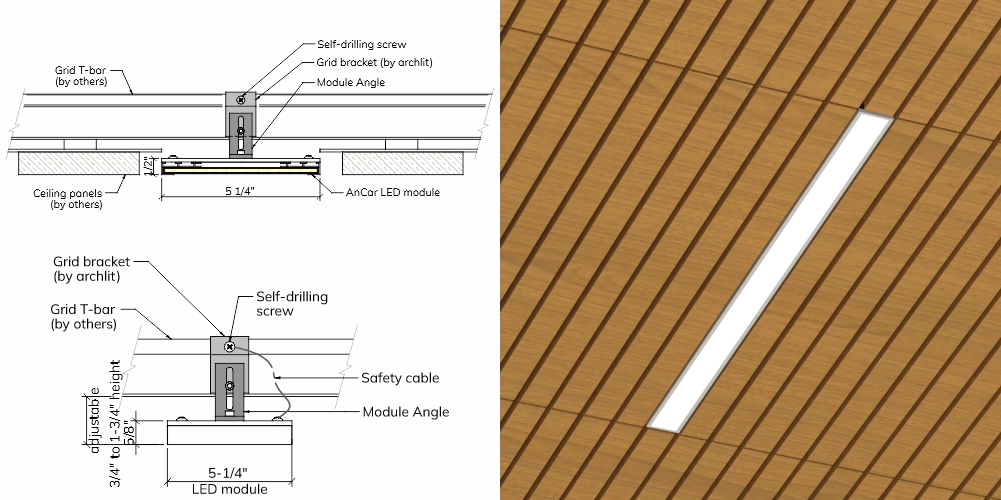

Powder-coated finish and diffuser protected with film for even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Based on Armstrong WoodWorks linear solid wood panels and WoodWorks linear veneered panels. Lighting module width 5.25". minimum to order 10 panels of each size or consult factory
Powder-coated finish and diffuser protected with film for even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Based on Armstrong WoodWorks linear solid wood panels and WoodWorks linear veneered panels. Lighting module width 5.25". minimum to order 10 panels of each size or consult factory
AnCar Slots 5
AnCar / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (03.26.2026)
Ancar Slots 5, extruded aluminum minimal design lighting fixture with remote drivers (max 60' from fixture).
Powder-coated finish and diffuser protected with film for even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Based on Armstrong WoodWorks linear solid wood panels and WoodWorks linear veneered panels. Lighting module width 5.25". minimum to order 10 panels of each size or consult factory
Powder-coated finish and diffuser protected with film for even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Based on Armstrong WoodWorks linear solid wood panels and WoodWorks linear veneered panels. Lighting module width 5.25". minimum to order 10 panels of each size or consult factory
AnCarSlots5
AnCar
Slots
5
AnCarSlots -
Lumen Output
35HO - 3500 K 960 lumens / ft 12 w /ft
35 - 3500 K 640 lumens / ft 6 w /ft
40HO - 4000 K 960 lumens / ft 12 w /ft
40 - 4000 K 640 lumens / ft 6 w /ft
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures
Finish
SA - Silver anodized aluminum
BK - Black
CU - Custom Specify RAL color
set up charges apply
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v
Runs

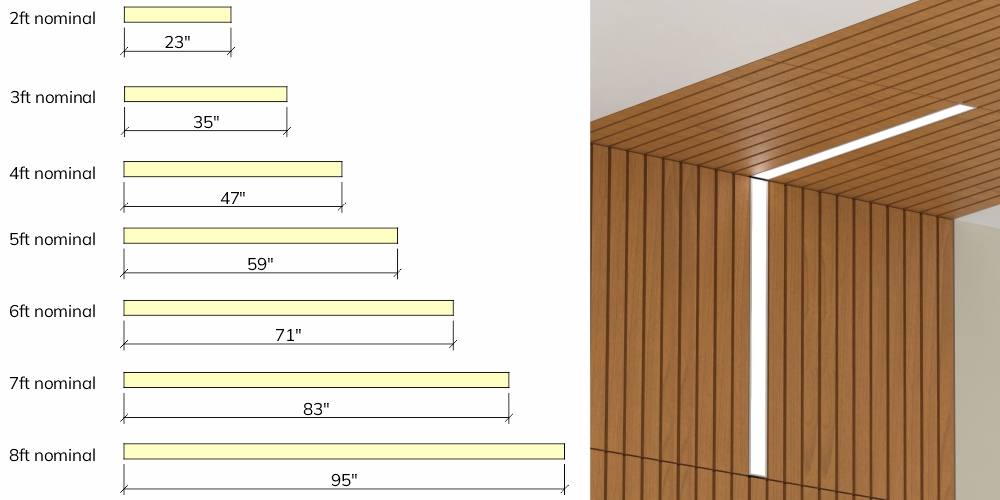

B - 2' nominal 23" LED module
C - 3' nominal 35" LED module
D - 4' nominal 47'' LED module
E - 5' nominal 59" LED module

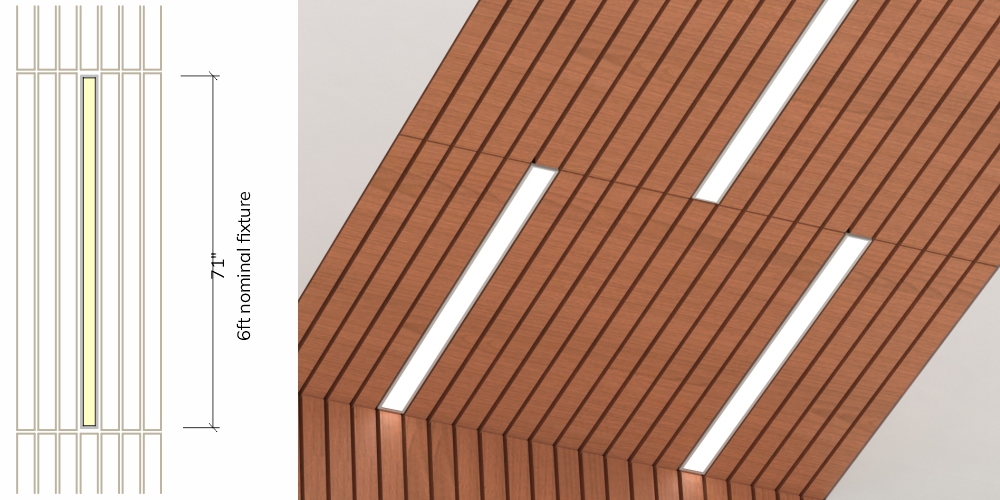

F - 6' nominal 71" LED module
G - 7' nominal 83" LED module
H - 8' nominal 95" LED module
Total Run: (0 ft 0 in)
Runs lengths may result in light leaks between fixtures
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Notes:
Drivers are Remote.max segment length 8'
Max distance to drivers 60'
CRI more than 90. McAdam 3 bin
Max distance to drivers 60'
CRI more than 90. McAdam 3 bin
