AnCar Pendant 3 Chimney
pdfPDF Cut sheet
pdfPDF Instructions
ies Files

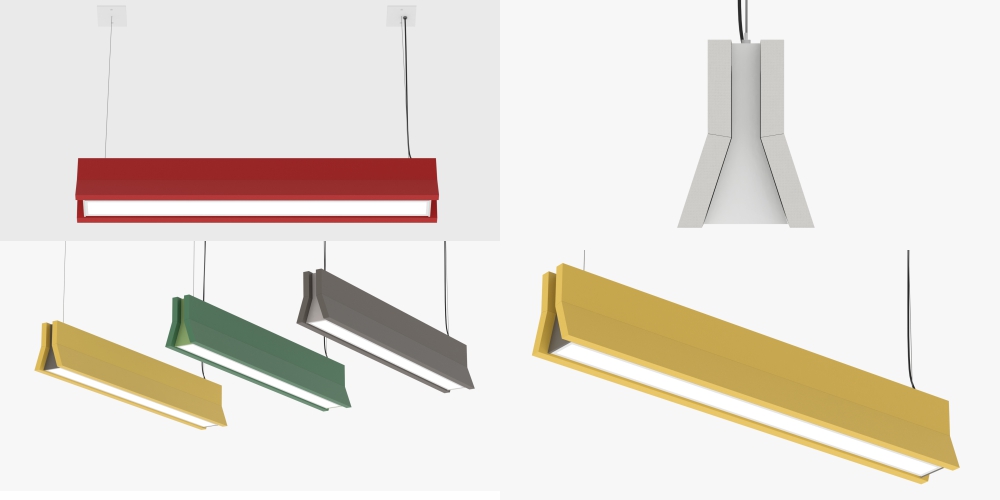

AnCar Pendant 3 Chimney in extruded aluminum minimal design lighting fixture with remote drivers (max 60' from fixture) and fiberglass acoustic panels covered in acoustic material (also contributes to the acoustical treatment of the space). Powder-coated finish and diffuser protected with film for even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module width 3.25" for downlight and 1x1 inch section for indirect component. Acoustical panels are 1" with NRC of 0.9

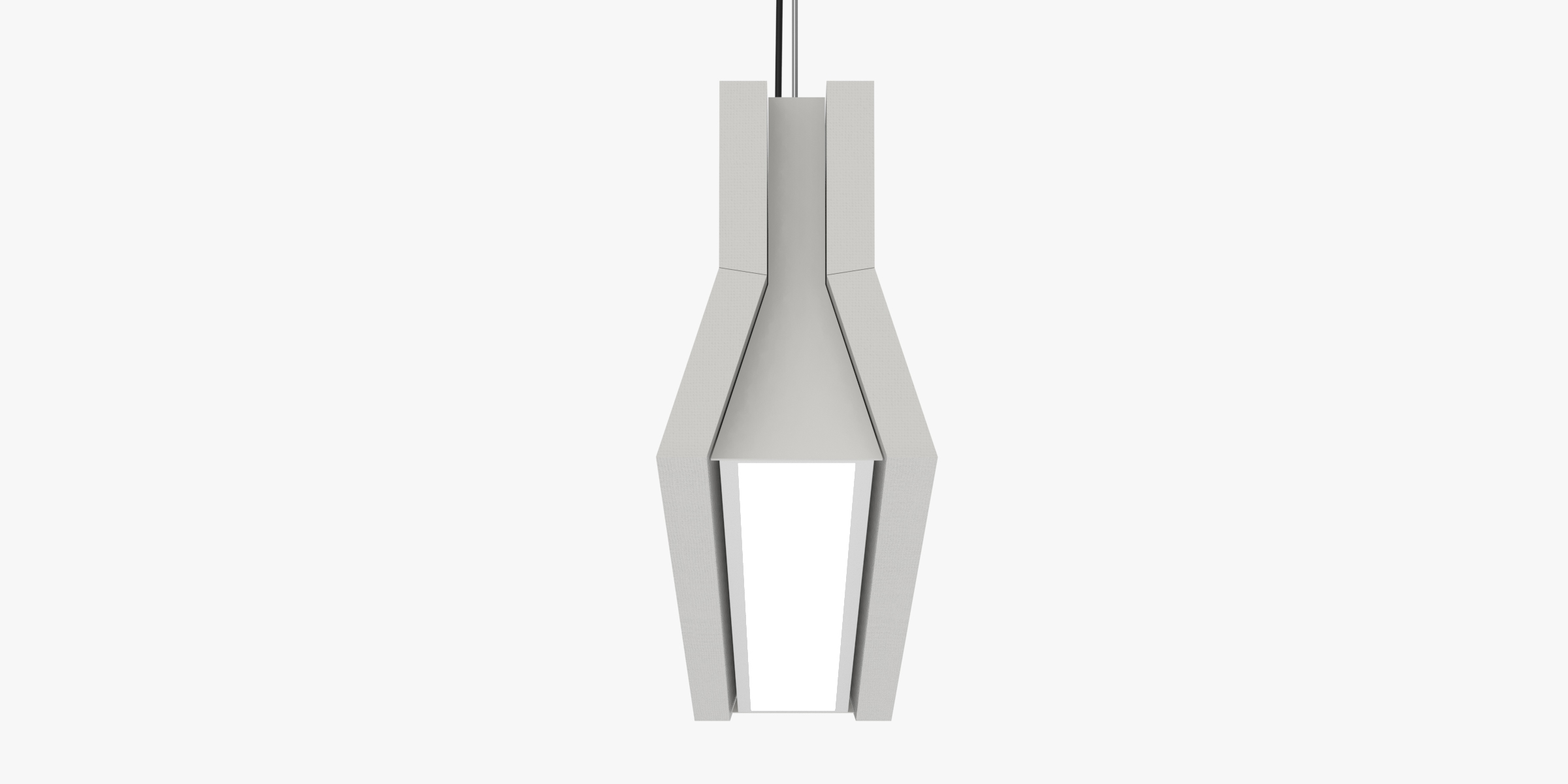

Product Image
archlit reserves the right to make changes without prior notice. (03.26.2026)
AnCar Pendant 3 Chimney in extruded aluminum minimal design lighting fixture with remote drivers (max 60' from fixture) and fiberglass acoustic panels covered in acoustic material (also contributes to the acoustical treatment of the space). Powder-coated finish and diffuser protected with film for even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module width 3.25" for downlight and 1x1 inch section for indirect component. Acoustical panels are 1" with NRC of 0.9
AnCPen3Chim
AnCar Pendant 3 Chimney
- AnCPen3Chim

Lumen Output Direct
35HO - 3500 K 960 lumens / ft 12 w /ft
35 - 3500 K 640 lumens / ft 6 w /ft
40HO - 4000 K 960 lumens / ft 12 w /ft
40 - 4000 K 640 lumens / ft 6 w /ft
Ndwn - No downlight

2700 K and 3000 K available for special ordering
Consult factory for other color temperatures

Lumen Output Indirect
3511 - 3500 K 780 lumens / ft 7.5 w /ft
3508 - 3500 K 560 lumens / ft 5.5w /ft
4011 - 4000 K 780 lumens / ft 7.5 w /ft
4008 - 4000 K 560 lumens / ft 5.5w /ft
Noind - No indirect lighting

2700 K and 3000 K available for special ordering
Consult factory for other color temperatures

Finish
SA - Silver anodized aluminum
BK - Black
CU - Custom Specify RAL color
set up charges apply

Finish of fabric
CUFa - Acoustical material
Please specify CUFa xx based in attached colors Colors can have differences based on monitors or printers cappabilities

Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v

Runs
B - 2' nominal 26" LED module
C - 3' nominal 38" LED module
D - 4' nominal 50'' LED module
E - 5' nominal 62" LED module
F - 6' nominal 74" LED module
G - 7' nominal 86" LED module
H - 8' nominal 98" LED module

Total Run: (0 ft 0 in)

Runs lengths may result in light leaks between fixtures

Canopy
Sq - Square Plate 4x4 Jbox
Rd - Round 4'' x 4'' Jbox

Suspension Aircraft Cable
36 - 36" max
100 - 100" max.

Emergency
00 - No Emergency
EM - Emergency module max. 4'

Notes:
Drivers are Remote.max segment length 8'
Max distance to drivers 60'
CRI more than 90. McAdam 3 bin
