AnCar 5 Square Serenade System Ceiling
Email
Download
View

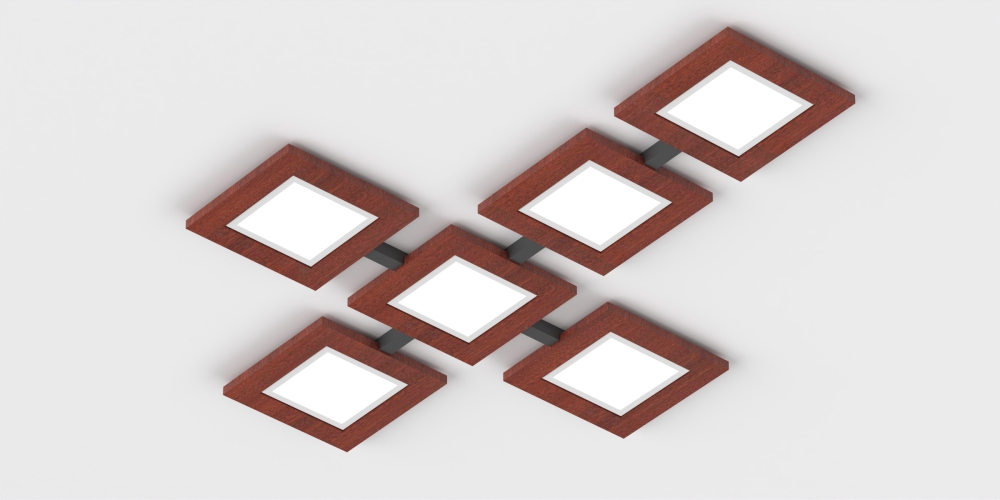

AnCar 5 Square Serenade System Ceiling, extruded aluminum and wood finish minimal design lighting fixture with remote drivers (max 60' from fixture).
AnCar 5 Square Serenade System Ceiling powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module square 5.25".
AnCar 5 Square Serenade System Ceiling powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module square 5.25".
AnCar 5 Square Serenade System Ceiling
AnCar / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (03.26.2026)
AnCar 5 Square Serenade System Ceiling, extruded aluminum and wood finish minimal design lighting fixture with remote drivers (max 60' from fixture).
AnCar 5 Square Serenade System Ceiling powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module square 5.25".
AnCar 5 Square Serenade System Ceiling powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module square 5.25".
AnCa5SerCe
AnCar
5
Square
Serenade
Ceiling
AnCa5SerCe -
Lumen Output
35 - 3500 K 810 lumens 10 w
40 - 4000 K 815 lumens 10 w
Qty of modules
Mod - Quantity of Modules
Max (8)modules per fixture
Connectors
Contor - Quantity of Connectors
Only intermediate
Finish Lighting module
SA - Silver anodized aluminum
BK - Black
CU - Custom Specify RAL color
set up charges apply
Finish Wood
W - White Ash
W - Wallnut
CUwoo - Custom Wood
Please specify wood
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Notes:
Drivers are Remote. max 60'
McAdam 3 bin
McAdam 3 bin
