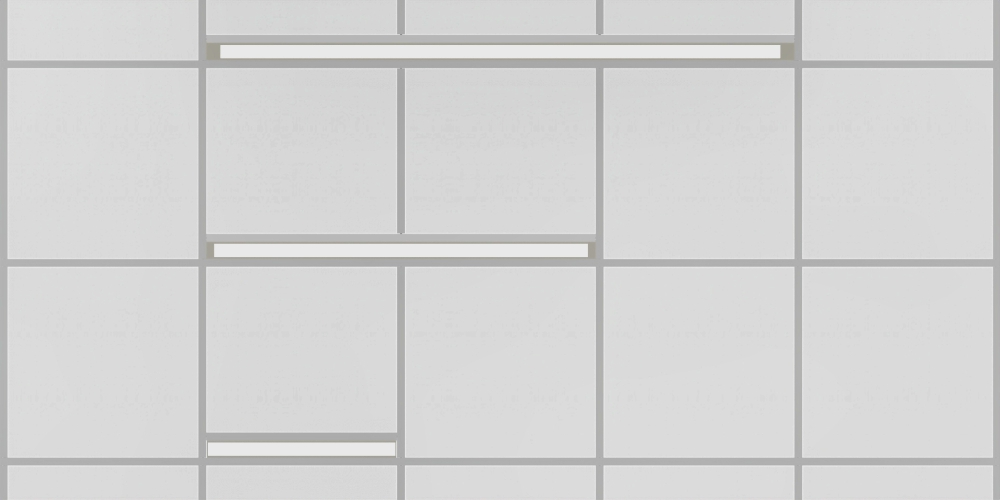

Straight Curves Grid is a nominal 2" linear downlight available in 2', 4' and 6' lengths. .
Output reaches up to 780 lumens per foot at 12.5 watts per foot, delivered through a clean diffuser that maintains uninterrupted visual lines.
Installation is simple. Universal brackets accommodate. Remote drivers can be located up to 30 feet from the fixture, keeping the ceiling plane uncluttered.
Refer to the dynamic specification sheet on the product page.
Output reaches up to 780 lumens per foot at 12.5 watts per foot, delivered through a clean diffuser that maintains uninterrupted visual lines.
Installation is simple. Universal brackets accommodate. Remote drivers can be located up to 30 feet from the fixture, keeping the ceiling plane uncluttered.
Refer to the dynamic specification sheet on the product page.
Straight Curves Grid
Straight Curves / Recessed
archlit reserves the right to make changes without prior notice. (05.07.2026)
Straight Curves Grid is a nominal 2" linear downlight available in 2', 4' and 6' lengths. .
Output reaches up to 780 lumens per foot at 12.5 watts per foot, delivered through a clean diffuser that maintains uninterrupted visual lines.
Installation is simple. Universal brackets accommodate. Remote drivers can be located up to 30 feet from the fixture, keeping the ceiling plane uncluttered.
Refer to the dynamic specification sheet on the product page.
Output reaches up to 780 lumens per foot at 12.5 watts per foot, delivered through a clean diffuser that maintains uninterrupted visual lines.
Installation is simple. Universal brackets accommodate. Remote drivers can be located up to 30 feet from the fixture, keeping the ceiling plane uncluttered.
Refer to the dynamic specification sheet on the product page.
StrCurvGrid
Straight
Curves
Grid
StrCurvGri -
Straight Curves Recessed
Lumen Output
35 - 3500 K 820 lumens / ft 8 w /ft
40 - 4000 K 840 lumens / ft 8 w /ft
Finish
WH - White
BK - Black
CU - Custom Specify RAL color
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
O - Non Dimmable 120v
1 - Non Dimmable 277v
Individual Modules
B - 2' nominal 23 1/8" LED module
D - 4' nominal 45 5/8'' LED module
F - 6' nominal 68 1/8" LED module
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Max emergency with 1 pack is 4' nominal
Notes:
Drivers are Remote.
Max distance to drivers 30'
CRI more than 90
McAdam 3 bin
max segment 6' nominal
Max distance to drivers 30'
CRI more than 90
McAdam 3 bin
max segment 6' nominal
