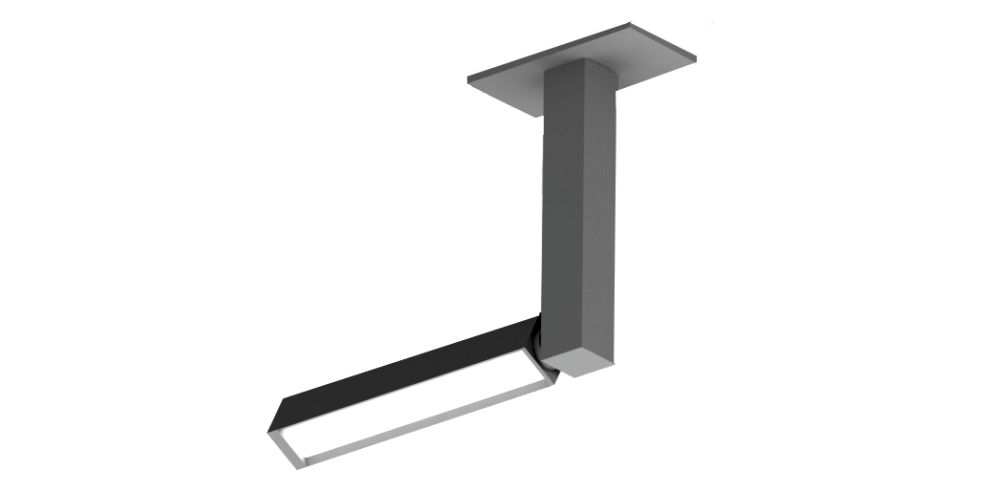

LeeSti Adagio, extruded aluminum minimal design 1''x '' lighting fixture with remote drivers (max distance 100’). For ceiling adjustable in the lighting module axis and at the canopy. Arms are the same section and can have different lengths. 3000 K and 2700 K with 1400 lumens and 12.5 w/foot. Dimmable and non dimmable with 0-10v and Triac drivers. Special film for LED allows a continuos and even line of light. Drivers are remote. Damp Location listed.
LeeSti Adagio
LeeSti / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (12.26.2017)
LeeSti Adagio, extruded aluminum minimal design 1''x '' lighting fixture with remote drivers (max distance 100’). For ceiling adjustable in the lighting module axis and at the canopy. Arms are the same section and can have different lengths. 3000 K and 2700 K with 1400 lumens and 12.5 w/foot. Dimmable and non dimmable with 0-10v and Triac drivers. Special film for LED allows a continuos and even line of light. Drivers are remote. Damp Location listed.
LAD
LeeSti
Adagio
Lumen Output
3017 - 3000 K 1200 lumens / ft 12 w /ft
3014 - 3000 K 1000 lumens / ft 10 w /ft
3011 - 3000 K 780 lumens / ft 7.5 w /ft
3008 - 3000 K 560 lumens / ft 5.5w /ft
3005 - 3000 K 350 lumens / ft 3.1 w /ft
3517 - 3500 K 1200 lumens / ft 12 w /ft
3514 - 3500 K 1000 lumens / ft 10 w /ft
3511 - 3500 K 780 lumens / ft 7.5 w /ft
3508 - 3500 K 560 lumens / ft 5.5w /ft
3505 - 3500 K 350 lumens / ft 3.1 w /ft
WhTu - White tuning 2700K @ 1050 lumens/foot and 6500k @1200 lumens/foot 12.5 watt/foot
All Uplight versions with light will have a transparent diffuser
Use of programmable drivers allow different outputs (lumen output
and load) to fix color temperature versions
Finish
WH - White
BK - Black
CU - Custom Color
Specify RAL color"
Dimming Options
O - Non Dimmable 120v
1 - Non Dimmable 277v
4 - Dimmable 0-10v (4wires, 120/277 v)
Modules
A - 1' nominal module 12.5W
B - 2' nominal module 25w
Arm
A3 - 3'' Arm
A6 - 6'' Arm
A12 - 12'' Arm
A18 - 18'' Arm
A24 - 24'' Arm
Canopy
RD - Round 4' x 4' Jbox
SQ - Square Plate 4' x 4'
SG - Single Gang Plate
Emergency
00 - No Emergency
EM - Emergency
Notes:
Drivers remote
Max distance to remote drivers 100’
Max distance to remote drivers 100’
