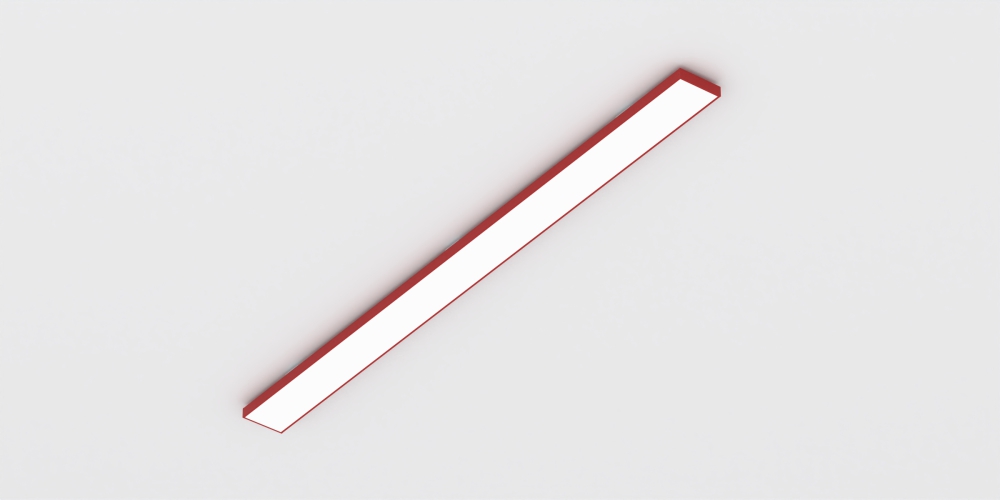

ChriBa 3 CeiWall extruded aluminum minimal design lighting fixture with remote drivers (max 20' from fixture). Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies
ChriBa 3 CeiWall
ChriBa / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (07.30.2026)
ChriBa 3 CeiWall extruded aluminum minimal design lighting fixture with remote drivers (max 20' from fixture). Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies
Chri3Ceiw
ChriBa
3
CeiWall
Fixture Code
Chri3Ceiw -
Please always start spec with code
Lumen Output
35HO - 3500 K 1260 lumens / ft 12 w /ft
40HO - 4000 K 1280 lumens / ft 12 w /ft
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures
Finish
WH - White
BK - Black
CU - Custom Specify RAL color
set up charges apply
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v

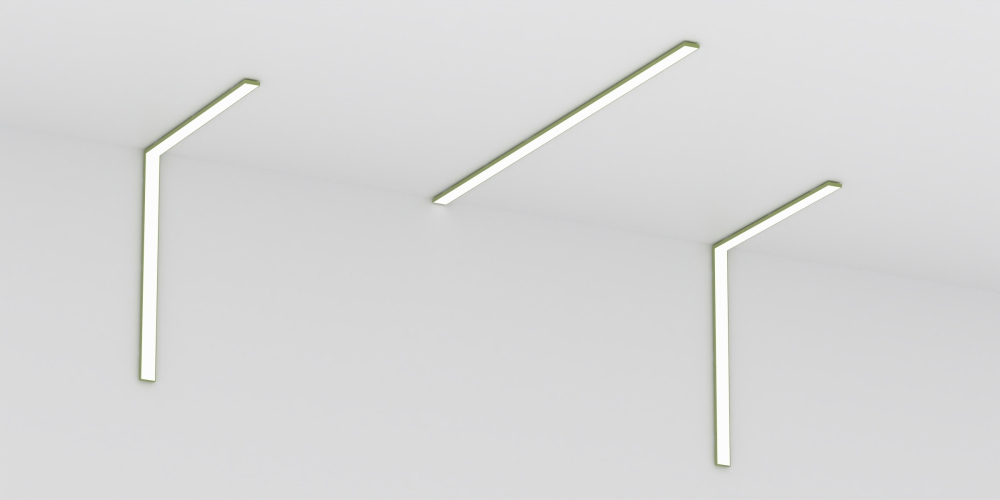

Installation

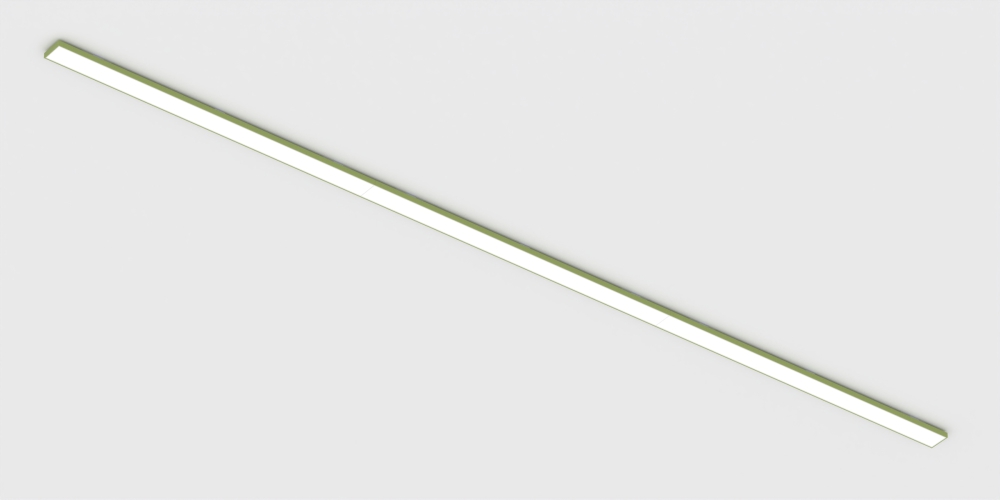

Cei - Ceiling

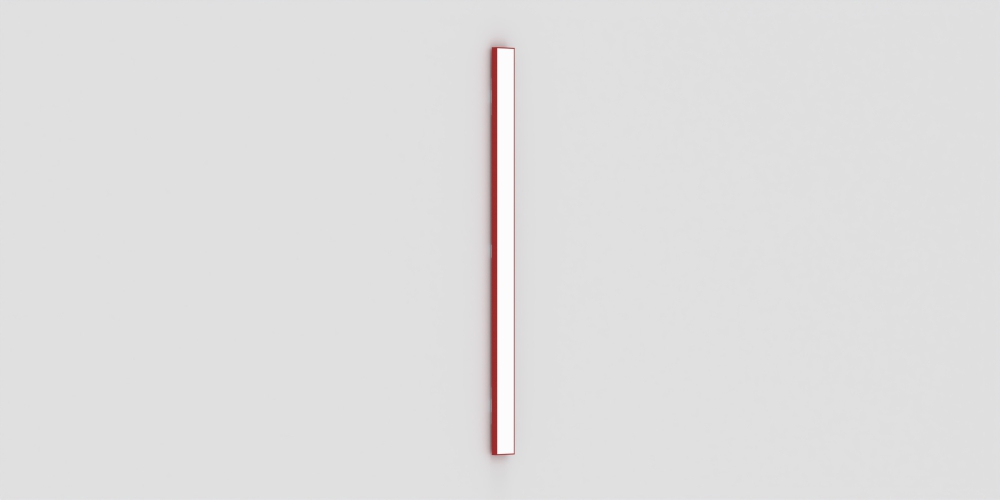

Wa - Wall
Specify qty of vertical (wall) and horizontal (ceiling)

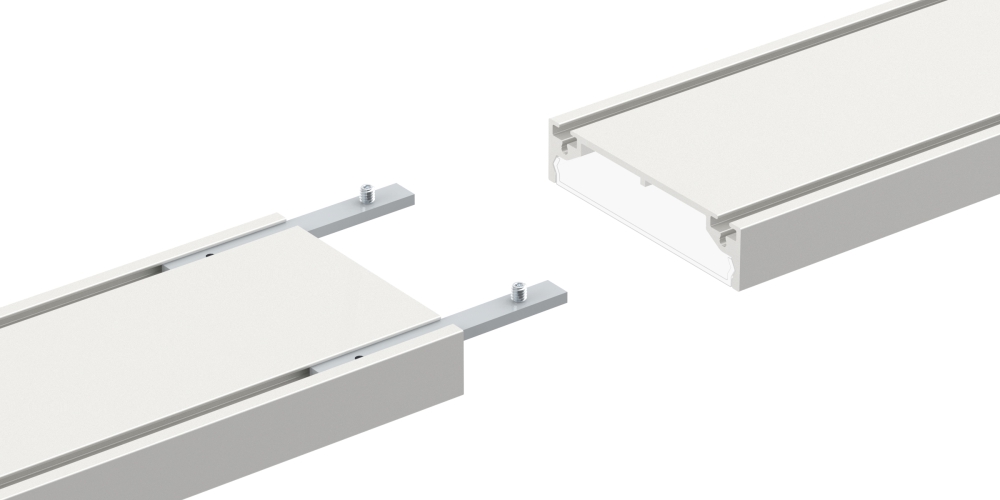

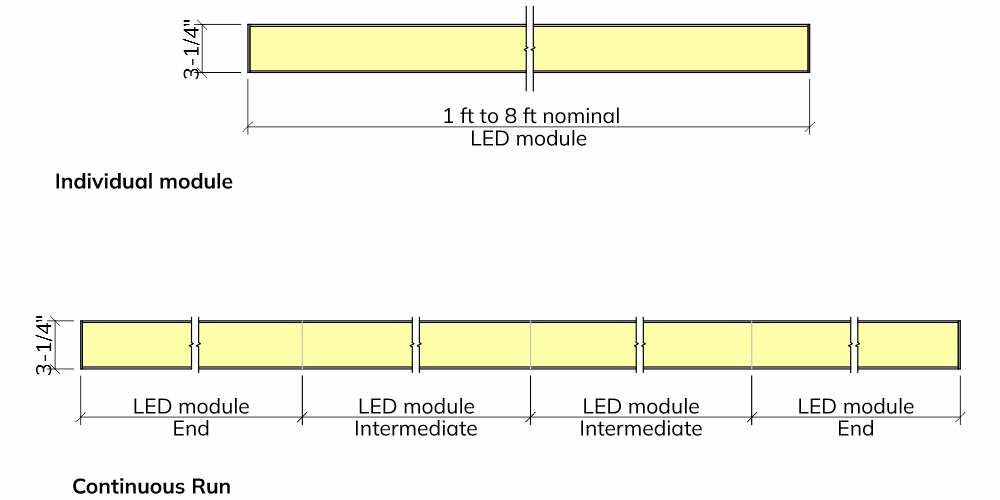

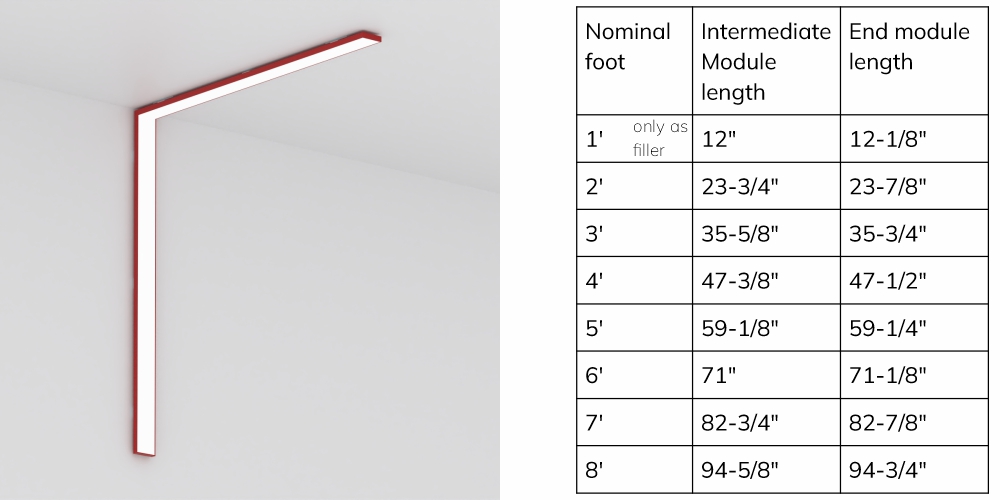

Runs
B - 2' nominal 23" LED module
C - 3' nominal 35 LED module
D - 4' nominal 47'' LED module
E - 5' nominal 59" LED module
F - 6' nominal 71" LED module
G - 7' nominal 83" LED module
H - 8' nominal 95" LED module
Total Run: (0 ft 0 in)
Runs lengths may result in light leaks between fixtures
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Notes:

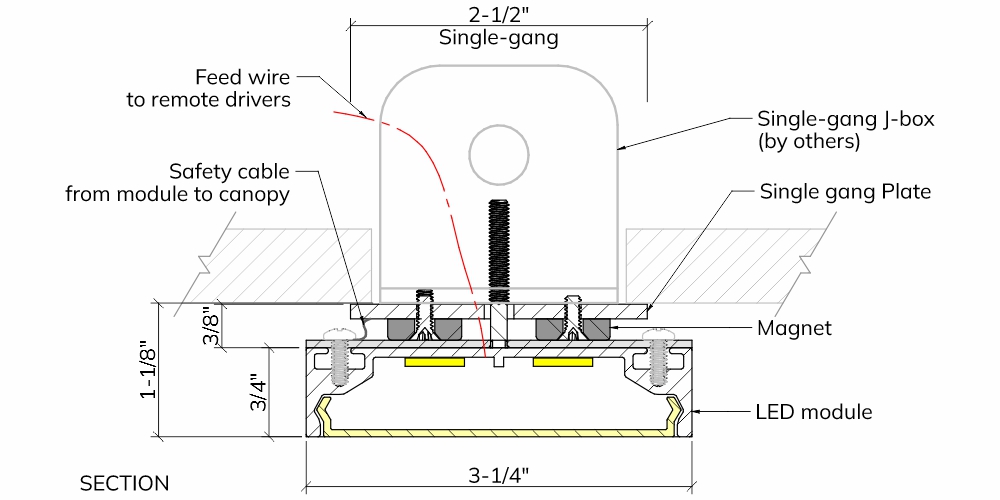

Drivers are Remote. max segment length 8'
Max distance to drivers 60'
CRI more than 90. McAdam 3 bin
Specify Qty of vertical (wall) and horizontal (ceiling)
archlit will generate submittals in case of runs specified
Max distance to drivers 60'
CRI more than 90. McAdam 3 bin
Specify Qty of vertical (wall) and horizontal (ceiling)
archlit will generate submittals in case of runs specified
