ChriBa 5 CeiWall extruded aluminum minimal design lighting fixture with remote drivers (max 20' from fixture).
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies
ChriBa 5 CeiWall
ChriBa / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (06.29.2026)
ChriBa 5 CeiWall extruded aluminum minimal design lighting fixture with remote drivers (max 20' from fixture).
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies
Chri5Ceiw
ChriBa
5
CeiWall
Acronym of model
Chri5Ceiw -
Please add at beginning of spec
Lumen Output
35 - 3500 K 1260 Lumen/foot 12 w/f
40 - 4000 K 1260 lumen/foot 12 w/f
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures
Max 8'nominal length
Installation
Cei - Ceiling
Wa - Wall
Specify qty of vertical (wall) and horizontal (ceiling)

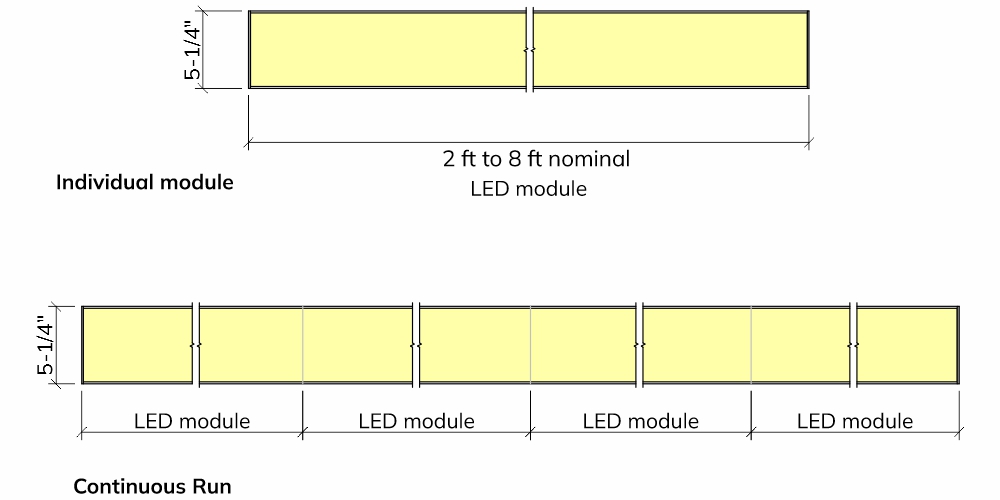

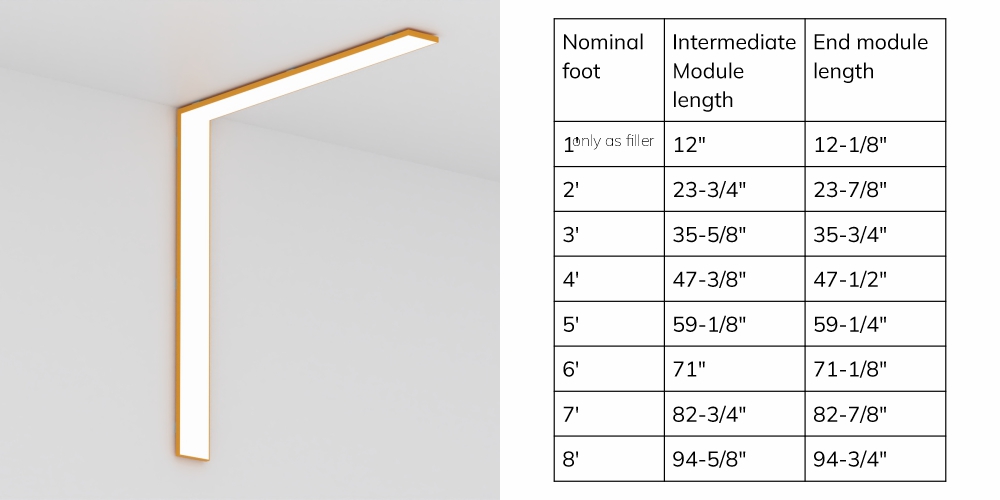

Runs
B - 2' nominal
C - 3' nominal
D - 4' nominal
E - 5' nominal
F - 6' nominal
G - 7' nominal
H - 8' nominal
Total Run: (0 ft 0 in)
Finish
WH - White
BK - Black
CU - Custom Specify RAL color
set up charges apply
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Notes:

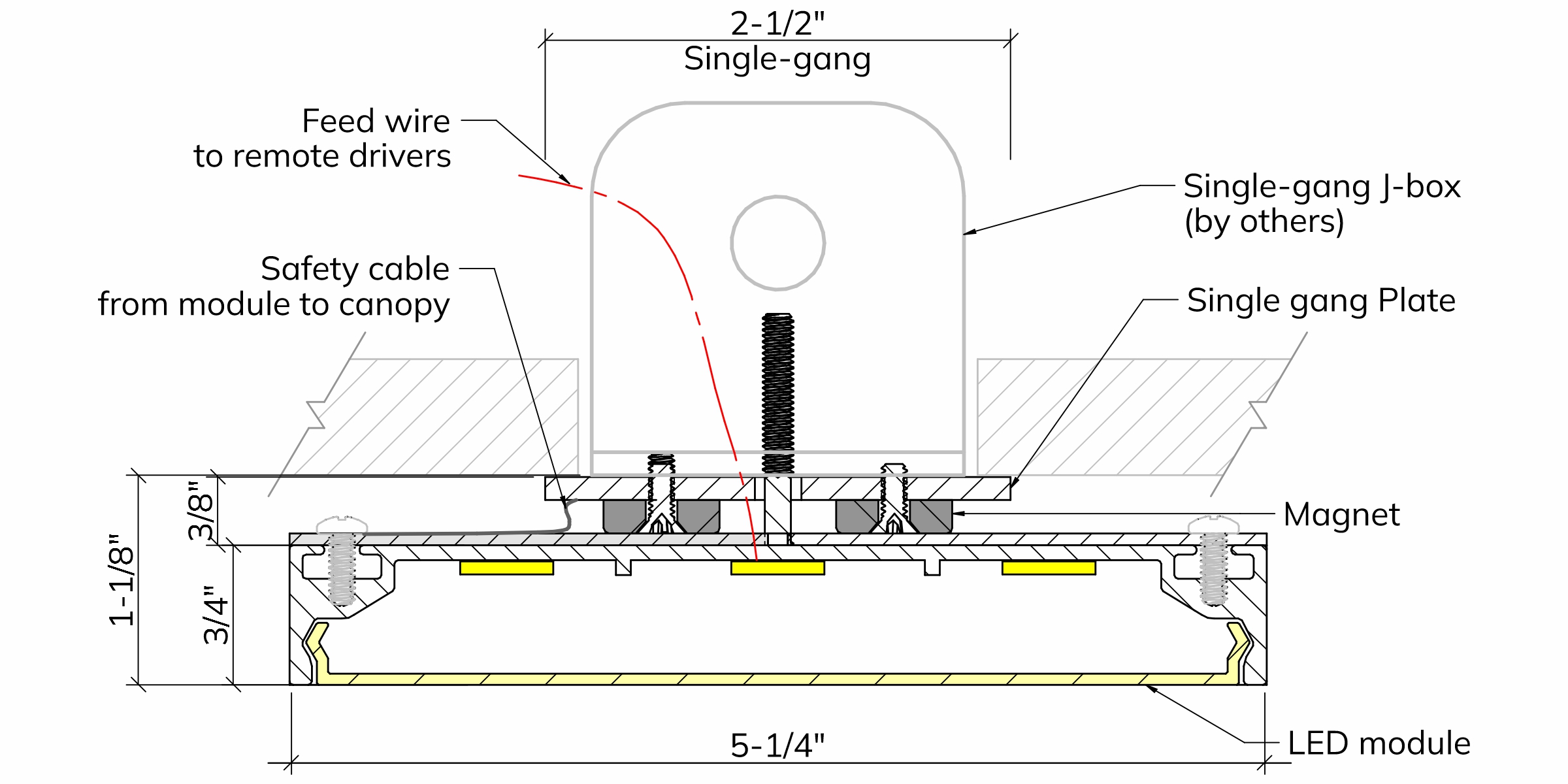

Drivers are Remote.
Max distance to drivers 20'
CRI more than 90. McAdam 3 bin
archlit will produce submittals
Max distance to drivers 20'
CRI more than 90. McAdam 3 bin
archlit will produce submittals
