ChriBa 3 Axiom Cove Direct
Email
Download
View
ChriBa 3 Axiom Cove Direct extruded aluminum minimal design lighting fixture with remote drivers (max 20' from fixture).
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies. Developed for Armstrong Axiom Ceilings Direct Cove System
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies. Developed for Armstrong Axiom Ceilings Direct Cove System
ChriBa 3 Axiom Cove Direct
ChriBa / Recessed
archlit reserves the right to make changes without prior notice. (07.09.2026)
ChriBa 3 Axiom Cove Direct extruded aluminum minimal design lighting fixture with remote drivers (max 20' from fixture).
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies. Developed for Armstrong Axiom Ceilings Direct Cove System
Powder-coated finish and diffuser for even illumination at highest lumen output. 1,250 lumens delivered per foot,11 w/foot. Dimmable and non dimmable. Individual and runs assemblies. Developed for Armstrong Axiom Ceilings Direct Cove System
Chri3Axiom
ChriBa
3
Axiom
Acronym of model
Chri3Axiom -
Please add at beginning of spec
Lumen Output
35 - 3500 K 1260 Lumen/foot 11 w/f
40 - 4000 K 1260 lumen/foot 11 w/f
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures

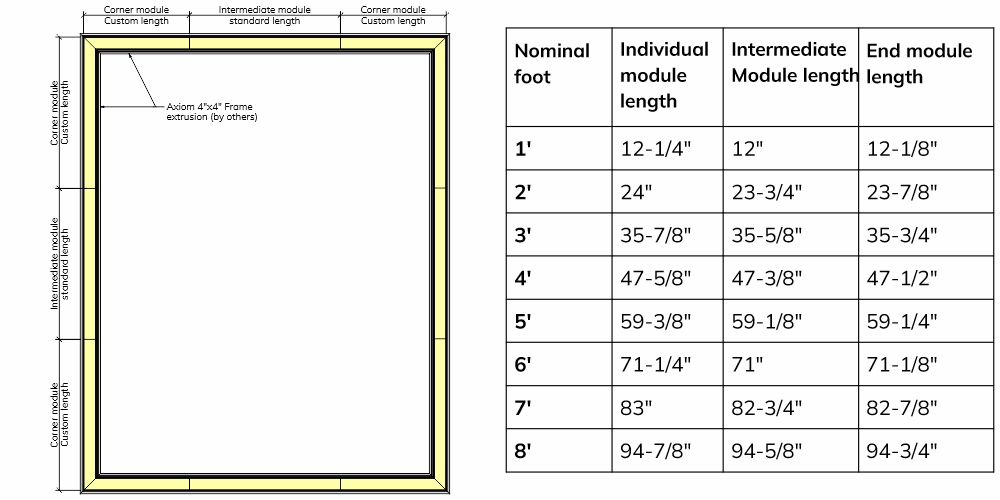

Max 8'nominal length
Lighting Modules
A - 1' nominal
Use only as filler in runs
B - 2' nominal
C - 3' nominal
D - 4' nominal
E - 5' nominal
F - 6' nominal
G - 7' nominal
H - 8' nominal
Finish
WH - White
BK - Black
CU - Custom Specify RAL color
set up charges apply
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Notes:

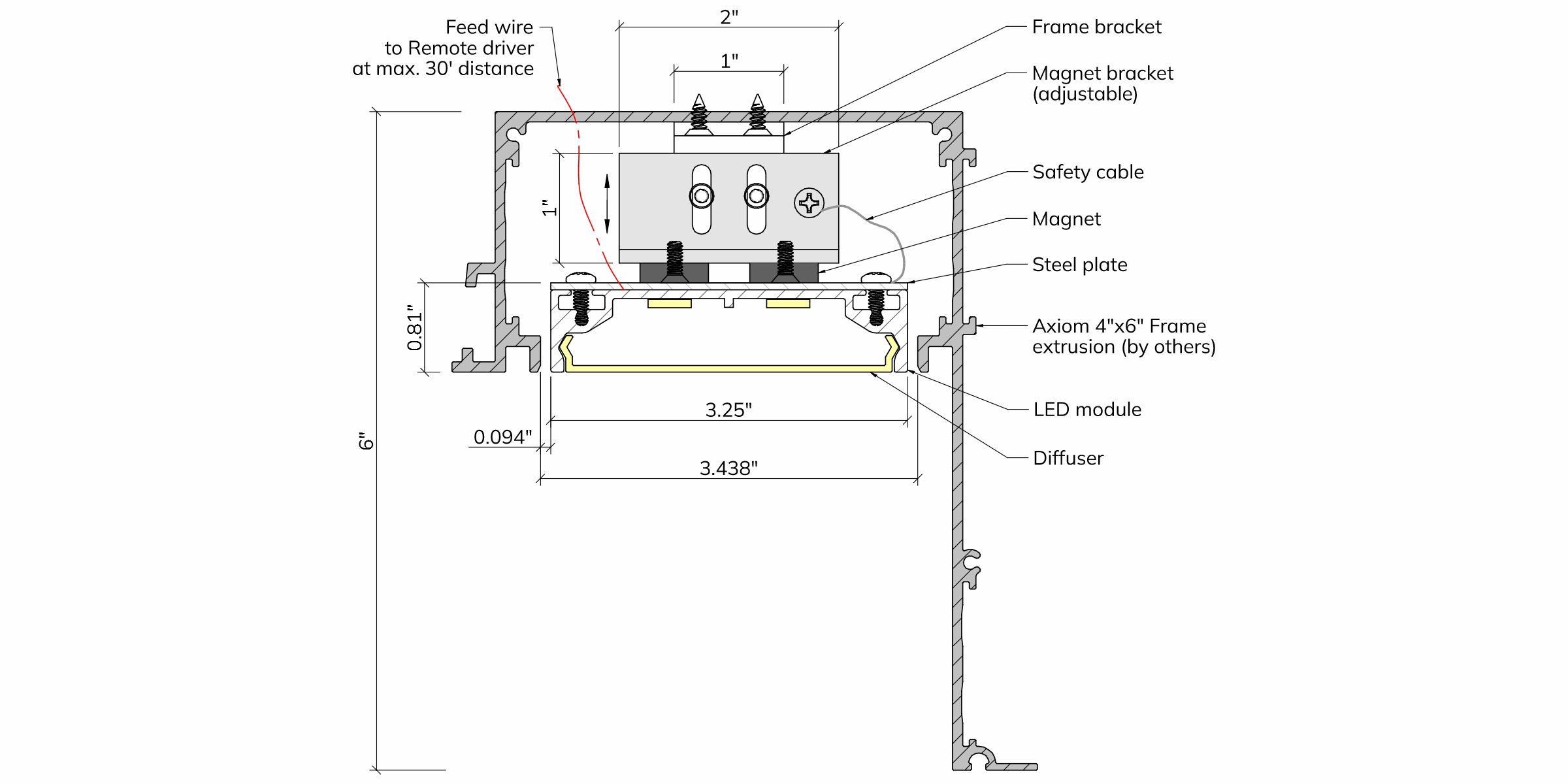

Drivers are Remote.
Max distance to drivers 20'
CRI more than 90. McAdam 3 bin
archlit will produce submittals
Max distance to drivers 20'
CRI more than 90. McAdam 3 bin
archlit will produce submittals
