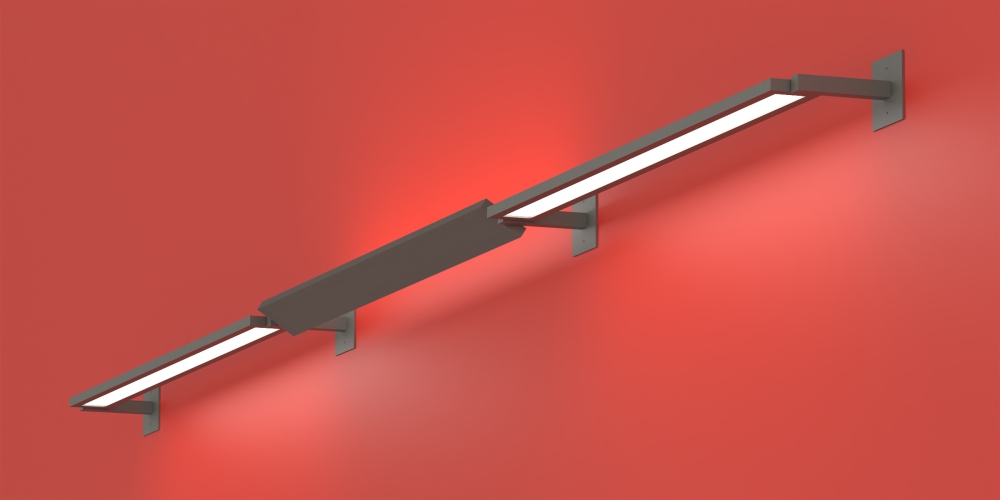

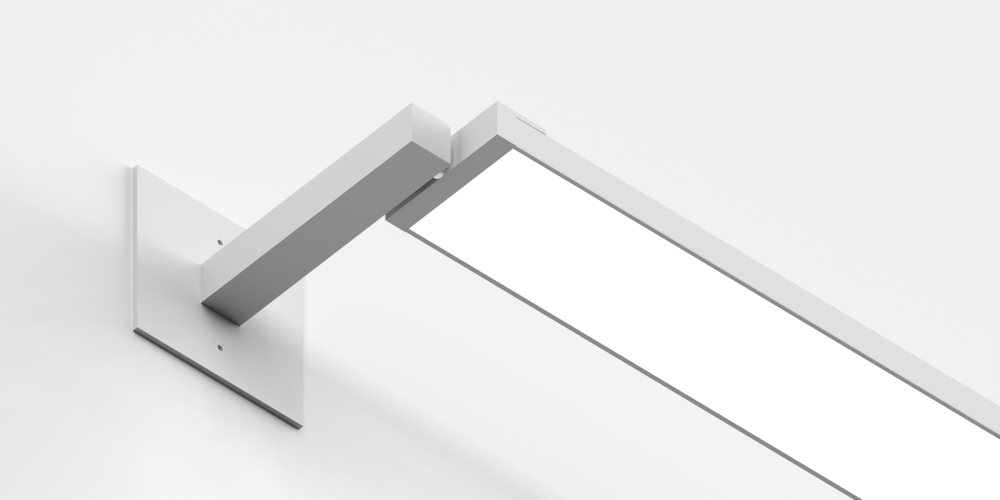

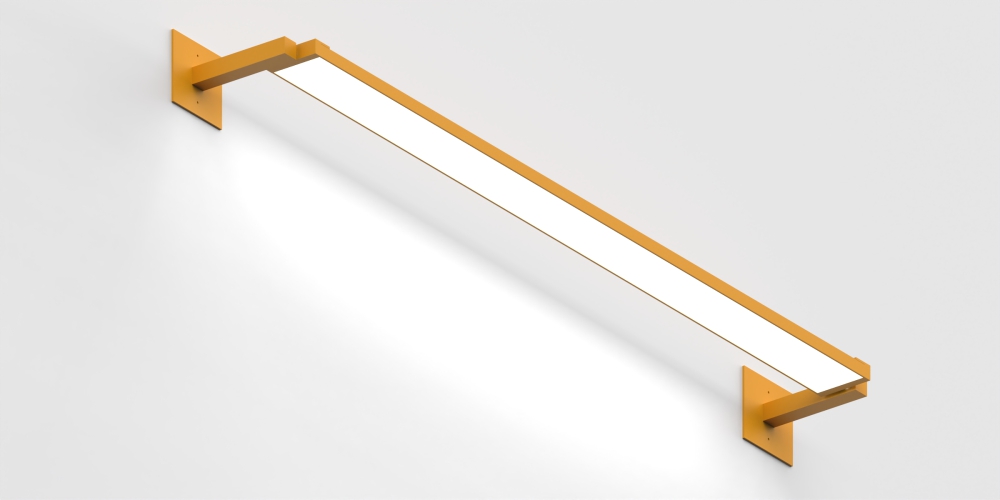

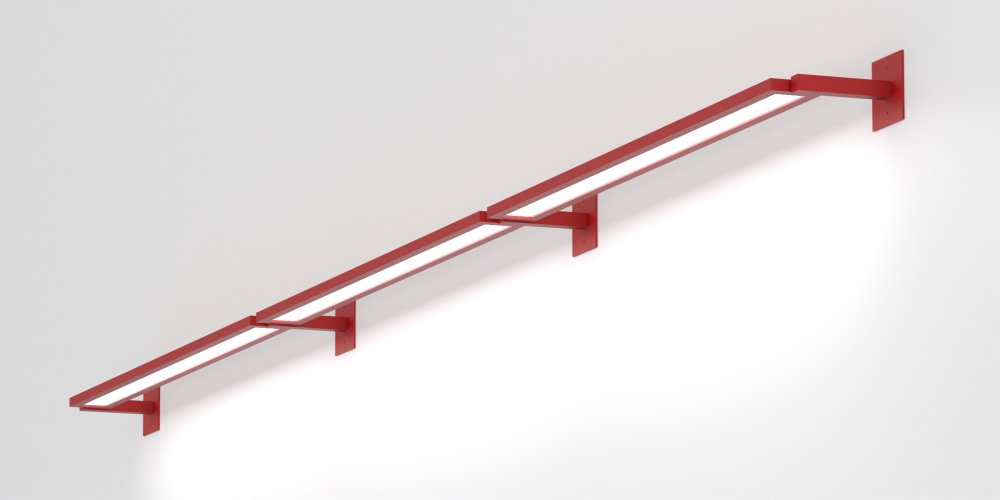

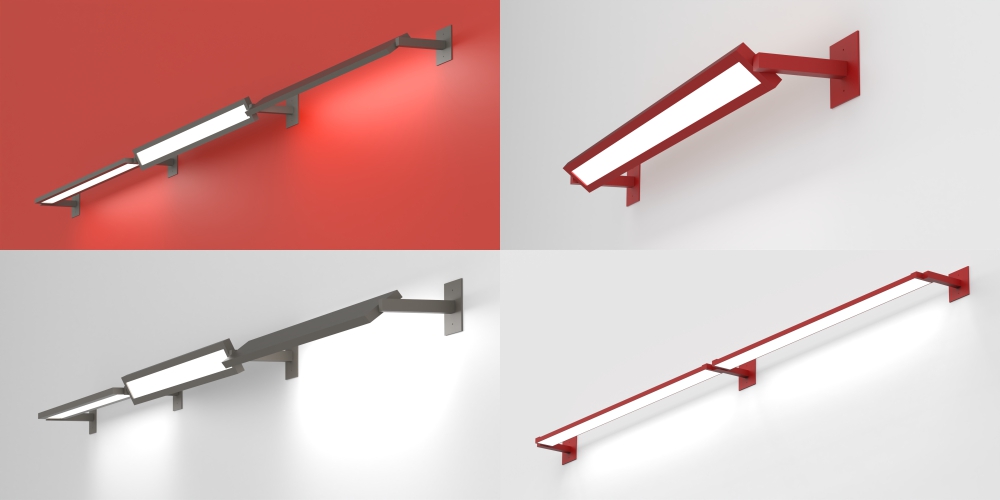

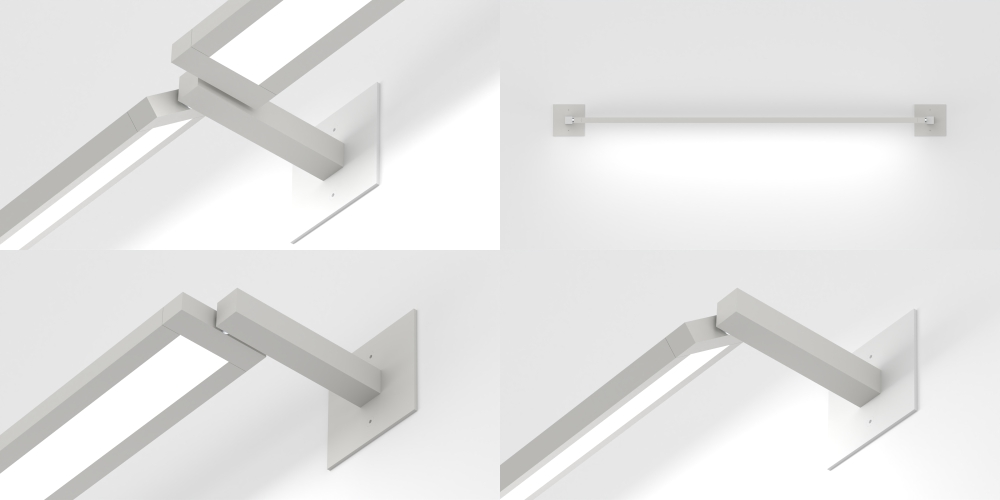

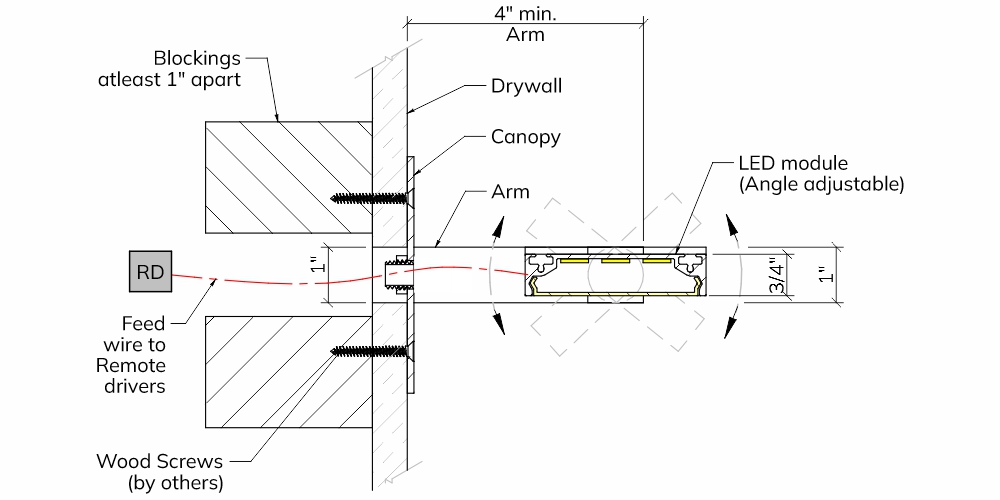

ChriBa 3 Duet is a minimalist lighting fixture constructed from extruded aluminum and equipped with remote drivers located up to 20 feet from the fixture.The fixture features a powder-coated finish and a diffuser designed to provide uniform illumination while maintaining maximum lumen output. Available in both dimmable and non-dimmable configurations. The lighting module has a width of 3.25 inches.
ChriBa 3 Duet
ChriBa / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (07.31.2026)
ChriBa 3 Duet is a minimalist lighting fixture constructed from extruded aluminum and equipped with remote drivers located up to 20 feet from the fixture.The fixture features a powder-coated finish and a diffuser designed to provide uniform illumination while maintaining maximum lumen output. Available in both dimmable and non-dimmable configurations. The lighting module has a width of 3.25 inches.
ChriB3Duet
ChriBa
3
Duet
Acronym of model
ChriB3Duet -
Please add at beginning of spec
Lumen Output
35 - 3500 K 1280 Lumens/foot 12 w/ f
40 - 4000 K 1280 lumen/foot 12 w/f
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures
Mounting
WA - Wall
CE - Ceiling
Finish
WH - White
BK - Black
CU - Custom Specify RAL color
set up charges apply

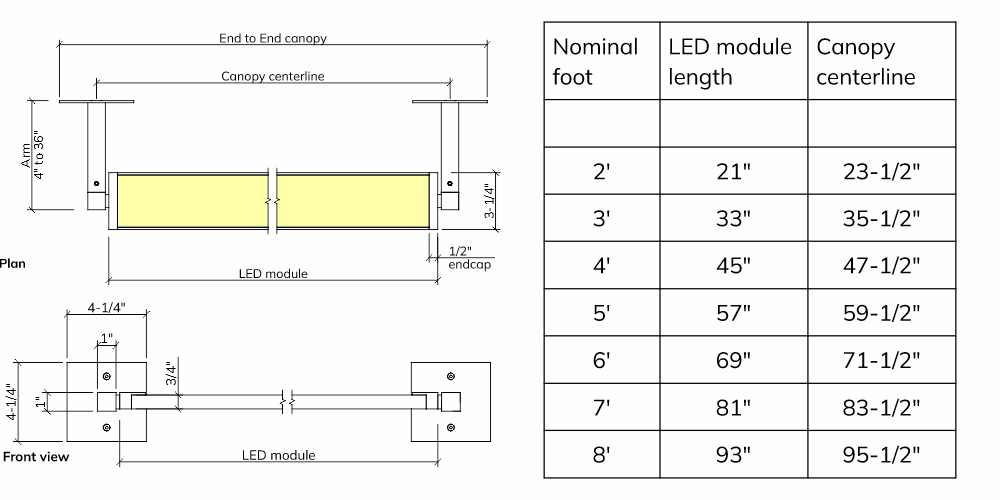

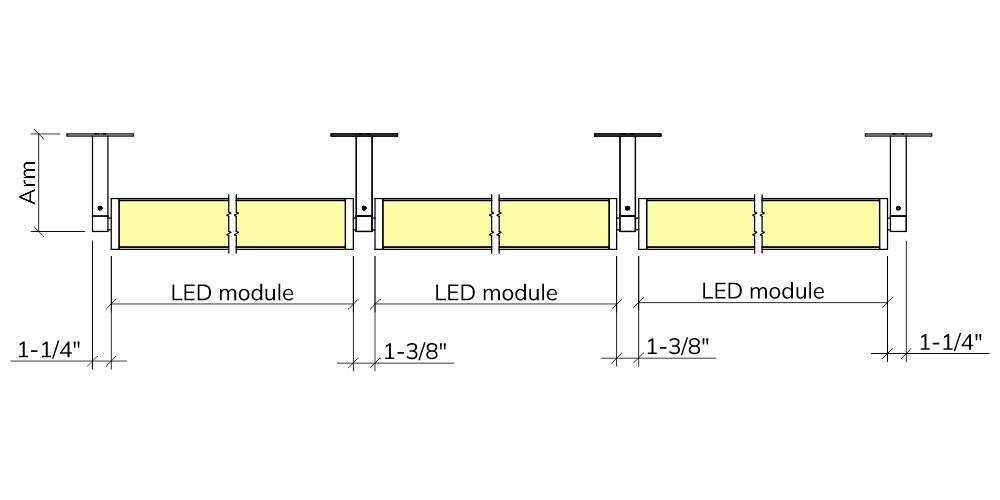

Runs
B - nominal 2' 23 3/4"
C - nominal 3' 35 5/8
D - nominal 4' 47 3/8
E - nominal 5' 59 1/8
F - nominal 6' 71
Total Run: (0 ft 0 in)
Arm Length
A4 - 4"
A6 - 6"
A8 - 8"
A12 - 12"
A18 - 18"
A24 - 24"
A36 - 36"
Only Ceiling Mounted
A36 only Ceiling Mounted
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Notes:
Drivers are Remote. max segment length 8'
Max distance to drivers 20'
CRI more than 90. McAdam 3 bin
