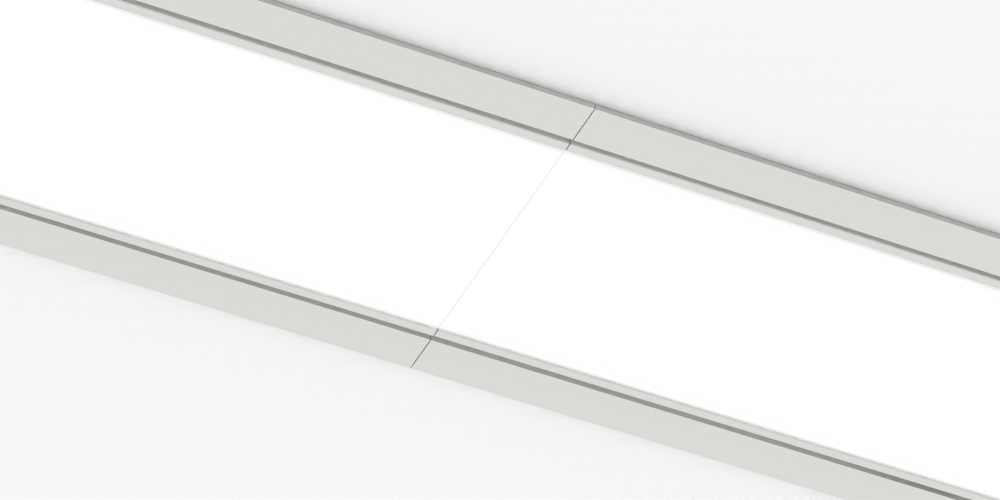

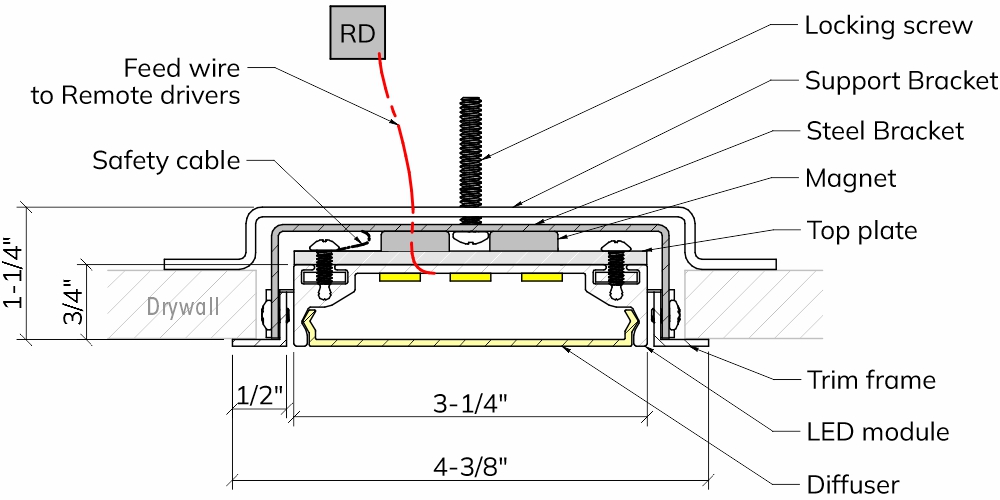

ChriBa 3 Recessed Drywall Trim, an extruded aluminum lighting fixture featuring a clean, minimal design with remote drivers located up to 20' from the fixture. Powder-coated finish and diffuser provide even illumination with high lumen output. Delivers 1,250 lumens per foot at 11 W/ft. Installation of lighting modules with magnets. Available in dimmable and non-dimmable configurations, as individual modules or continuous runs. MacAdam 3-step binning and 90 CRI.
ChriBa 3 Recessed Drywall Trim
ChriBa / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (08.21.2026)
ChriBa 3 Recessed Drywall Trim, an extruded aluminum lighting fixture featuring a clean, minimal design with remote drivers located up to 20' from the fixture. Powder-coated finish and diffuser provide even illumination with high lumen output. Delivers 1,250 lumens per foot at 11 W/ft. Installation of lighting modules with magnets. Available in dimmable and non-dimmable configurations, as individual modules or continuous runs. MacAdam 3-step binning and 90 CRI.
Chri3DryTm
ChriBa
3
Drywall
Trim
Acronym of model
Chri3DryTm -
Please add at beginning of spec
Lumen Output Horizontal
H35 - Horizontal 3500 K 840 Lumens/foot 7.5 w/ f
H35HO - Horizontal 3500 K 1260 Lumen/foot 11 w/f
H40 - Horizontal 4000 K 840 lumen/foot 7.5 w/ f
H40HO - Horizontal 4000 K 1260 lumen/foot 11 w/f
NoH - No Horizontal
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures
Max 8'nominal length with std output
HO max. length 5' nominal
Lumen Output Vertical
V35 - Vertical 3500 K 840 lumen/foot 7.5 w/ f
V35HO - Vertical 3500 K 1260 lumen/foot 11 w/f
V40 - Vertical 4000 K 840 lumen/foot 7.5 w/ f
V40HO - Vertical 4000 K 1260 lumen/foot 11 w/ f
NoV - No Vertical
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures
Max 8'nominal length with std output
HO max. length 5' nominal
Finish
WH - White
BK - Black
CU - Custom Specify RAL color
set up charges apply

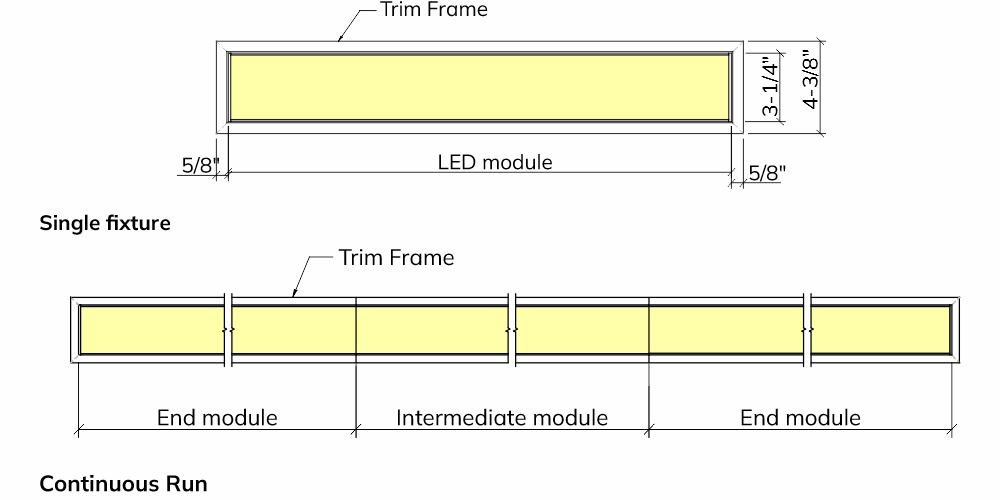

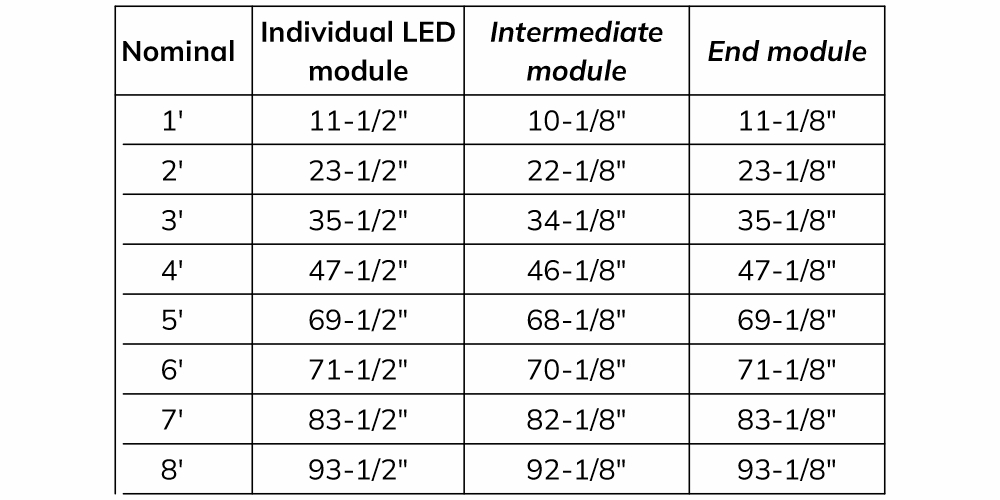

Runs Horizontal
HB - Horizontal Run 2' 23 3/4"
HC - Horizontal Module 3' 35 5/8
HD - Horizontal Module 4' 47 3/8
HE - Horizontal Module 5' 59 1/8
HF - Horizontal Module 6' 71
HG - Horizontal Module 7'
HH - Horizontal 8' nominal
HA - Horizontal Module 1' 12"
Use only as filler
Runs Vertical
VB - Vertical Run 2' 23 3/4"
VC - Vertical Module 3' 35 5/8
VD - Vertical Module 4' 47 3/8
VE - Vertical Module 5' 59 1/8
VF - Vertical Module 6' 71
VG - Vertical Module 7' 82 3/4"
VH - Vertical Module 8' 94 5/8"
VA - Vertical Module 1' 12"
Use only as filler
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
O - Non Dimmable 120v
Emergency
00 - No Emergency
EM - Emergency module max. 4'
Notes:
Drivers are Remote. max segment length 8'
Max distance to drivers 20'
CRI more than 90. McAdam 3 bin
Runs lengths may result in light leaks between fixtures
archlit will generate submittals
Max distance to drivers 20'
CRI more than 90. McAdam 3 bin
Runs lengths may result in light leaks between fixtures
archlit will generate submittals
