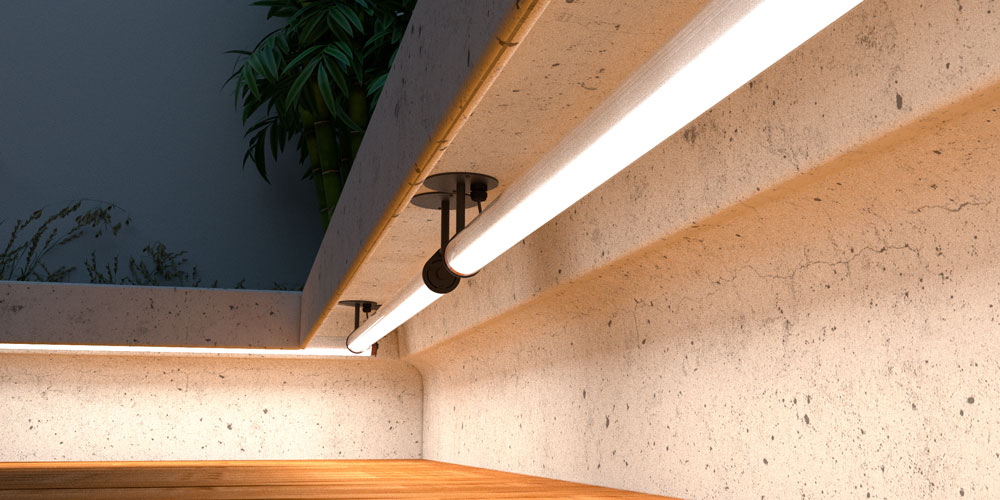

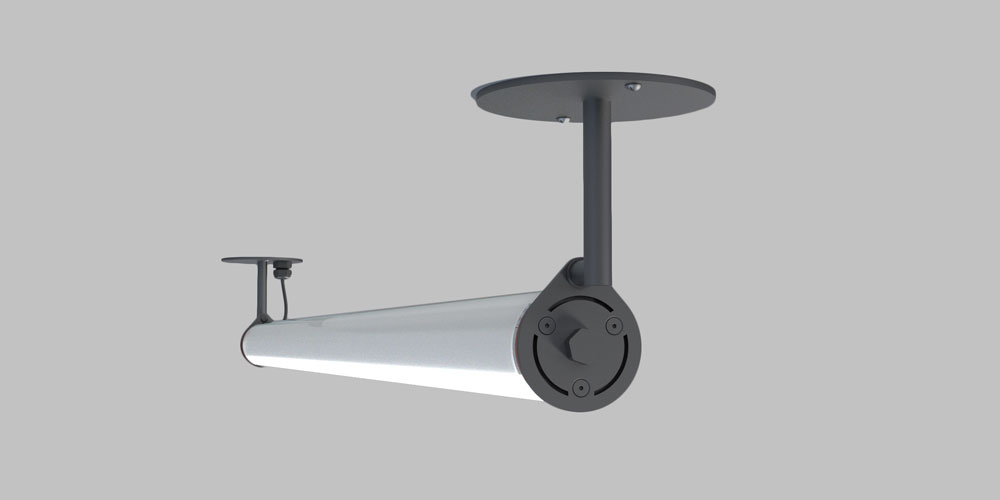

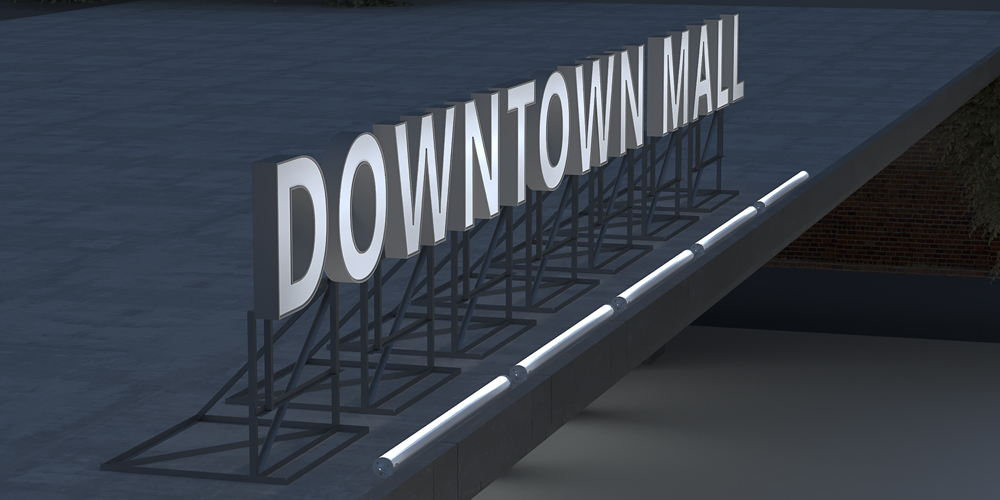

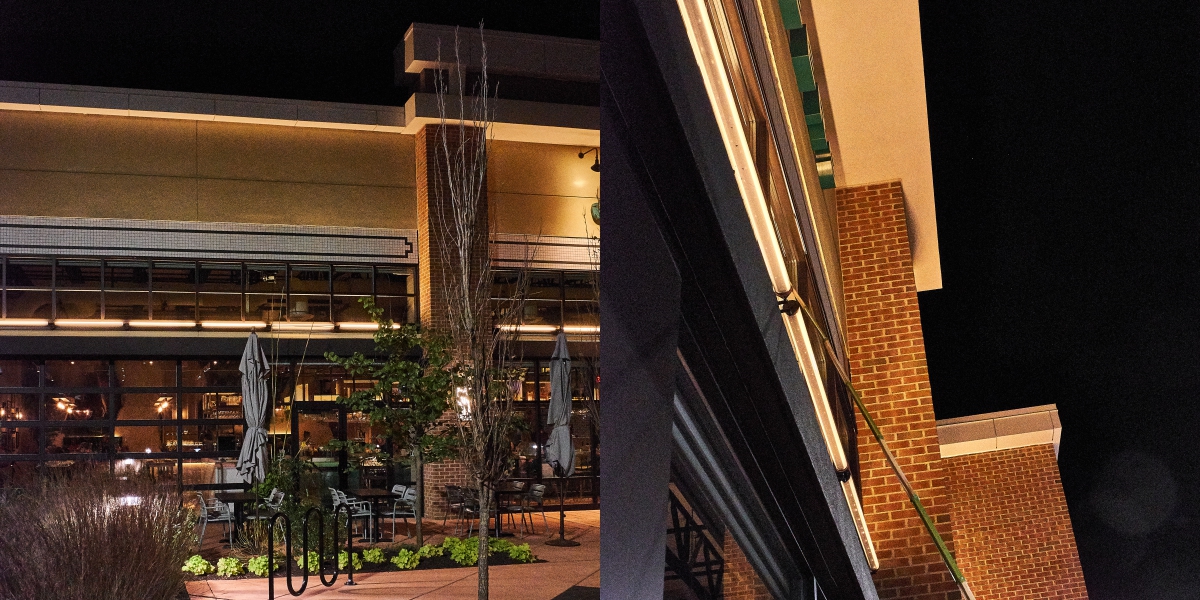

Wall and ceiling mounted Lighting Fixture for outdoors in an enclosure and end caps black in polycarbonate, and LED tray in aluminum, O ring at extremities seals the lighting components from water. A diffusing film is included for even illumination from the LED source. UV Stabilized Polycarbonate formulation. Dimmable 0- 10V. Individual mounting and runs can be achieved, sharing mounting canopies. Fixtures are individually adjustable. Symmetrical or asymmetrical distribution available. Remote drivers.
Design:Susana Babic + Gaspar Glusberg
IP66K rated
Design:Susana Babic + Gaspar Glusberg
IP66K rated
Da Round
Da / Outdoor
archlit reserves the right to make changes without prior notice. (02.25.2022)
Wall and ceiling mounted Lighting Fixture for outdoors in an enclosure and end caps black in polycarbonate, and LED tray in aluminum, O ring at extremities seals the lighting components from water. A diffusing film is included for even illumination from the LED source. UV Stabilized Polycarbonate formulation. Dimmable 0- 10V. Individual mounting and runs can be achieved, sharing mounting canopies. Fixtures are individually adjustable. Symmetrical or asymmetrical distribution available. Remote drivers.
Design:Susana Babic + Gaspar Glusberg
IP66K rated
Design:Susana Babic + Gaspar Glusberg
IP66K rated
DaR
Da
Round
Lumen Output
27 HO - 2700 K 12.5 w/f 910 Lumens/f
30HO - 3000 K 12.5 w/f 980 Lumens/f
35HO - 3500 K 12.5 w/f 1010 Lumens/f
40HO - 4000 K 12.5 w/f 1040 Lumens/f
27 - 2700 K 5.5 w/f 384 Lumens/f
30 - 3000 K 5.5 w/f 384 Lumens/f
40 - 4000 K 384 lumens /f 4.9 w/f
Output direction
Up - Up
Dn - Down
Ds - Double sided
Only for std output 5.5 w/f.
Only std distribution.
Assume 11 w/f with both sides
Criteria from fixture installed on horizontal plane with canopies on top
Finish
BK - Black
Cu - Custom Color
Specify RAL color
End caps, hardware, valves and liquid tight devices are black
Dimming
0 - Non Dimmable 120v
1 - Non Dimmable 277v
4 - Dimmable 0-10v (4wires, 120 or 277 v)
Enclosure for dimmers provided as they are remote. Suitable for damp location. In case of using special boxes for outdoor locations (by others) use archlit boxes in the boxes for splices
Runs
A - 1' nominal module
Dimension at center line of canopy (J Box)
B - 2' nominal module
Dimension at center line of canopy (J Box)
C - 3' nominal module
Dimension at center line of canopy (J Box)
D - 4' nominal module
Dimension at center line of canopy (J Box)
AE - Arm End
Add 6" to the complete run for clearance for canopy/ J Box
Ai - Arm intermediate
Total Run: (0 ft 0 in)
Light Distribution
St - Standard
Sd - Symmetrical 36 degrees
Ad - Asymmetrical
Using asymmetrical in runs, specify qty. of each in product code. Good for estimates. Provide schemes /drawings to clarify asymmetrical side.
archlit will generate submittals
Specify qty of each per run
Arms Length
A6 - Arm Standard 5 5/8"
A12 - 12"
A18 - 18"
Only for ceiling applications.
Consult factory for wall installation
A24 - 24"
Only for ceiling applications.
Consult factory for wall installation
A36 - 36"
Only for ceiling applications.
Consult factory for wall installation
ACu - Custom Length
Specify ACu xx"
Canopy / Spike
Rd - Round
RdS - Round and Spike
Sp - Spike
Spikes only 5 3/4" for Std arms
Round for Std J box
Emergency
00 - No emergency
EM - Emergency
Max 4' nominal of emergency
Emergency in a run, specify qty of packs. Box for emergency outdoors installed (by others)
We suggest for one emergency pack and driver Polycase SB-46-02 (1 driver and 1 emergency pack) (by others)
Notes:
Drivers are remote at 80’ max.
Location of drivers in a cluster with access recommended for easier dimmer and power connections.
CRI more than 50, McAdam 3 bin
Location of drivers in a cluster with access recommended for easier dimmer and power connections.
CRI more than 50, McAdam 3 bin
