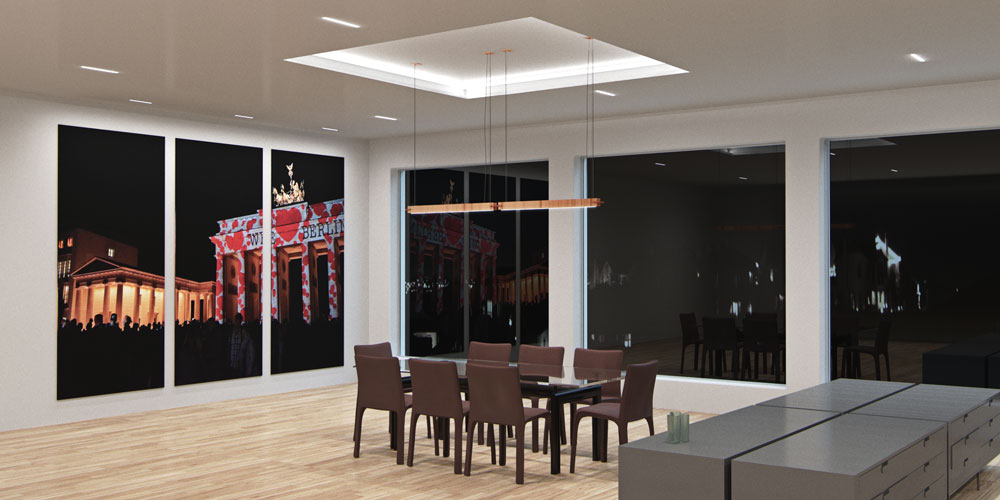

Naso is an indirect cove system in aluminum extrusion featuring mud-in precision knife edge for streamlined effect. The transition between the drywall ceiling and the "nose" is trimless. Powder coated finish and components for alignment of segments (4', typical, and fillers) are supplied.
LeeSti cove lighting modules are included as part of the assembly in 1" x 1" section in extruded aluminum. Adjustable with diffusing film so source is not perceived.
Drivers are remote and can be dimmable (0-10v - 4 wires for central dimmer systems or Triac -2 wires for standard dimmers). 12.5 w per foot in 2700K or 3000K. Remote drivers at 100' max from the fixture. Max length of 4' for non dimmable or 0-10v dimmer. 4' for Triac version requires 2 drivers.
LeeSti cove lighting modules are included as part of the assembly in 1" x 1" section in extruded aluminum. Adjustable with diffusing film so source is not perceived.
Drivers are remote and can be dimmable (0-10v - 4 wires for central dimmer systems or Triac -2 wires for standard dimmers). 12.5 w per foot in 2700K or 3000K. Remote drivers at 100' max from the fixture. Max length of 4' for non dimmable or 0-10v dimmer. 4' for Triac version requires 2 drivers.
LeeSti Naso
LeeSti / Wall/Ceiling
archlit reserves the right to make changes without prior notice. (01.17.2017)
Naso is an indirect cove system in aluminum extrusion featuring mud-in precision knife edge for streamlined effect. The transition between the drywall ceiling and the "nose" is trimless. Powder coated finish and components for alignment of segments (4', typical, and fillers) are supplied.
LeeSti cove lighting modules are included as part of the assembly in 1" x 1" section in extruded aluminum. Adjustable with diffusing film so source is not perceived.
Drivers are remote and can be dimmable (0-10v - 4 wires for central dimmer systems or Triac -2 wires for standard dimmers). 12.5 w per foot in 2700K or 3000K. Remote drivers at 100' max from the fixture. Max length of 4' for non dimmable or 0-10v dimmer. 4' for Triac version requires 2 drivers.
LeeSti cove lighting modules are included as part of the assembly in 1" x 1" section in extruded aluminum. Adjustable with diffusing film so source is not perceived.
Drivers are remote and can be dimmable (0-10v - 4 wires for central dimmer systems or Triac -2 wires for standard dimmers). 12.5 w per foot in 2700K or 3000K. Remote drivers at 100' max from the fixture. Max length of 4' for non dimmable or 0-10v dimmer. 4' for Triac version requires 2 drivers.
LNaso
LeeSti
Naso
Lumen Output
3017 - 3000 K 1200 lumens / ft 12 w /ft
3014 - 3000 K 1000 lumens / ft 10 w /ft
3011 - 3000 K 780 lumens / ft 7.5 w /ft
3008 - 3000 K 560 lumens / ft 5.5w /ft
3005 - 3000 K 350 lumens / ft 3.1 w /ft
3517 - 3500 K 1200 lumens / ft 12 w /ft
3514 - 3500 K 1000 lumens / ft 10 w /ft
3511 - 3500 K 780 lumens / ft 7.5 w /ft
3508 - 3500 K 560 lumens / ft 5.5w /ft
3505 - 3500 K 350 lumens / ft 3.1 w /ft
WhTu - White tuning 2700K @ 1050 lumens/foot and 6500k @1200 lumens/foot 12.5 watt/foot
All Uplight versions with light will have a transparent diffuser
Use of programmable drivers allow different outputs (lumen output
and load) to fix color temperature versions
Finish
WH - White
BK - Black
CU - Custom Color
Specify RAL color
Dimming
O - Non Dimmable 120v
1 - Non Dimmable 277v
4 - Dimmable 0-10v (4wires, 120 or 277 v)
TRIAC drivers max 2 boards or 24"
A 4' lighting module requires (2) TRIAC drivers
Remote drivers max 100'
Runs
A - 1' module 12.5w 12 5/8"
B - 2' module 25w 23 3/8"
C - 3' module 37.5 w 34 5/8"
D - 4' module 50w 45 5/8"
Total Run: (0 ft 0 in)
Runs Lighting Modules
Add 1/8" between modules
Runs Straight Naso extrusion
AN - 1' module
BN - 2' module
CN - 3' module
DN - 4' module
HN - 8' module
For special not having a multiple exact of modules please round up with published modules
Connectors Naso
NCi - Naso connector interior 90 degrees
Specify qty
NCiCU - Naso connector interior Custom
Specify angle and qty
NCo - Naso connector outside 90 degrees
Specify qty
NCoCU - Naso connector outside Custom
Specify angle and Qty
Connectors are i (internal) or o (outside), they are related with the position of the wall
Lengths of corners compute as linear feet
Emergency
00 - No Emergency
EM - Emergency
Specify qty of lighting modules in emergency (max lighting module length for emergency pack is 4') for each pack.
Distance max to emergency packs is 50'
Notes:
Drivers are remote
Max distance to drivers 100'
For budgeting purposes please work with linear feet of extrusions and specify qty of corners
For Special sizes and figures please submit drawings
Max distance to drivers 100'
For budgeting purposes please work with linear feet of extrusions and specify qty of corners
For Special sizes and figures please submit drawings
